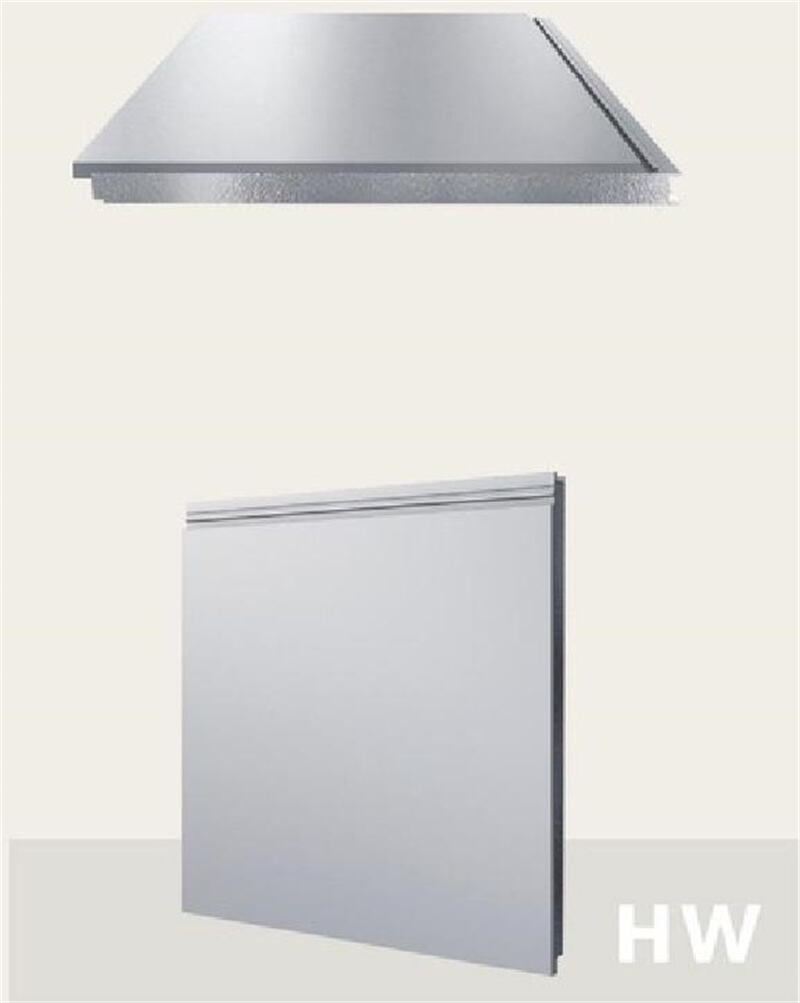

HW Industrial Building Curtain Wall Cladding Sandwich Panels
Engineered for modern industrial architecture, the HW Series Industrial Building Curtain Wall Cladding Sandwich Panels integrates the superior fire safety of rock wool (or PU edge-wrapped rock wool) with the premium aesthetics of color-coated steel. This prefabricated sandwich panel system delivers a sleek, flat metal curtain wall effect while ensuring exceptional thermal insulation and structural durability.
- Overview
- Technical Specifications
- Applications
- Core Competence
- Recommended Products
Product details

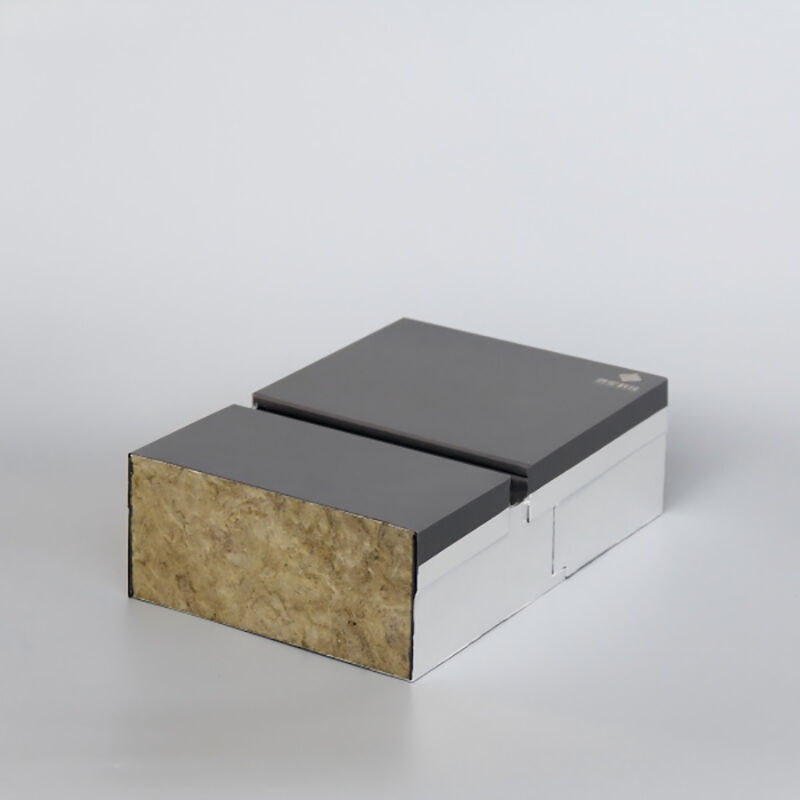

The HW Industrial Building Curtain Wall Cladding Sandwich Panel represents the evolution of metal composite cladding. Designed for high-performance building envelopes, this system utilizes high-density rock wool or PU edge-wrapped rock wool as the core insulation material, bonded between high-end color-coated steel sheets.
Manufactured via an advanced continuous production line, the panels undergo a precision folding process to create a unique box-shaped structure. This design ensures the metal sheet fully encloses the non-jointing sides, enhancing both weather resistance and longevity.
By combining the functionality of thermal insulation with the visual impact of a high-end prefabricated metal curtain wall, the HW Series offers a "perfect combination" of energy efficiency and architectural beauty. The system features purposefully designed installation nodes, allowing for rapid, reasonable, and efficient assembly on site.
Performance Features
1. Green & Energy-Efficient Core Materials
Our Sandwich panels are engineered to meet strict standards for green construction. The core material (Rock Wool/PU) provides superior thermal insulation and fireproof performance, significantly reducing building energy consumption and ensuring compliance with modern safety regulations.
2. Fully Wrapped for Maximum Durability
Unlike traditional open-edge panels, the HW Series Industrial Building Curtain Wall Cladding Panels features a core that is fully wrapped by the steel face. This edge-wrapping technology prevents moisture ingress and core degradation, guaranteeing a long service life and sustained structural integrity.
3. Superior Flatness & Aesthetic Appeal
The system creates an exceptionally even surface, showcasing the elegant, high-tech appearance of a premium metal curtain wall. The seamless finish brings a strong sense of modernity to industrial and commercial building facades.
4. High Structural Strength & Bending Resistance
Thanks to the stiff cladding design and box-like structure, the panels possess excellent mechanical properties. They are highly resistant to bending and wind loads, making the overall wall structure mechanically strong and stable under various environmental conditions.
Node Legend

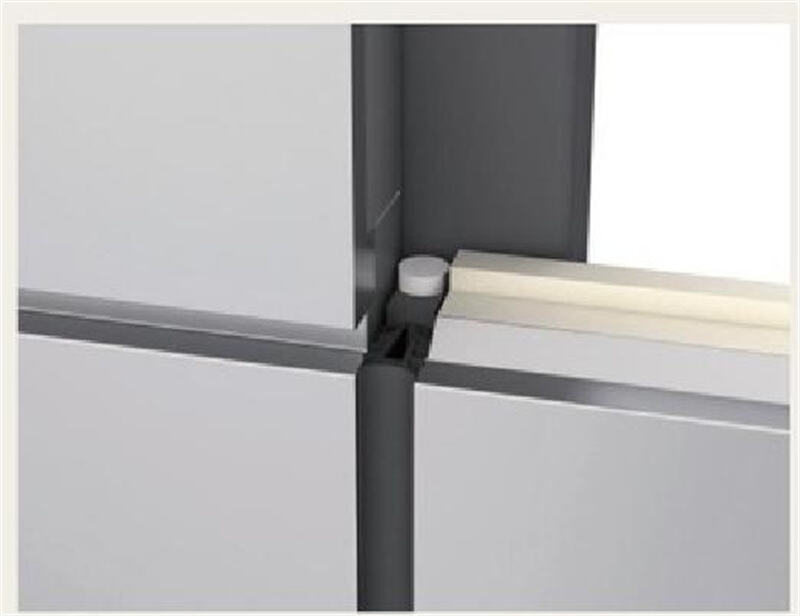

Center seam diagram
Please contact us for specific details regarding the nodes.
Why Choose HW Industrial Building Curtain Wall Cladding?
• Aesthetics: Sleek, modern design that elevates industrial building exteriors.
• Installation: Scientifically designed nodes for fast, cost-effective installation.
• Safety: Non-combustible core materials for maximum fire protection.
Technical Specifications
Material Characteristics Table for HW Industrial Building Curtain Wall Cladding.
| Size(mm) | Standard size: 1000 | Optional width: 500-1200 | Suggested length:< 15000 | Standard thickness:50,75,100,150 | ||
| Surface pattern | Mirror surface | Ripple-like corrugation | Engrossed | Mini corrugation | ||
| Skin thickness (mm) | Front steel sheet:0.6-0.8 | Back steel sheet:0.4-0.6 | Front aluminum sheet:0.7-1.0 | Back aluminum sheet:0.4-0.7 | ||
| Joint width(mm) | 20 | |||||
| Core material | Rock wool,PU and rock wool | PU and glass wool | ||||
| Core material density (Kg/m³) | Rockwool:120-140 | Glass wool:64 | ||||
| Flammability | Class A | |||||
Table of Load without extra support and thermal performance specifics for HW Industrial Building Curtain Wall Cladding.
| Core material | Thickness (mm) | Type of Support | Load(KN/m2)/rafter spacing(mm) | Panel weight(kg/㎡) | Thermal conductivity(w/㎡k) | |||||
| 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | |||||
| Rock wool | 50 | Single-span/multi-span | 5652 | 4217 | 3490 | 3018 | 2674 | 2408 | 15.88 | 0.76 |
| 75 | 7470 | 5605 | 4662 | 4050 | 3604 | 3259 | 18.72 | 0.53 | ||
| 100 | 9079 | 6827 | 5689 | 4951 | 4414 | 3996 | 21.56 | 0.40 | ||
| 150 | 11882 | 8927 | 7434 | 6465 | 5759 | 5212 | 27.24 | 0.27 | ||
| Glass wool | 50 | Single-span/multi-span | 5543 | 4082 | 3340 | 2857 | 2507 | 2237 | 13.32 | 0.74 |
| 75 | 7339 | 5442 | 4480 | 3854 | 3399 | 3048 | 14.88 | 0.52 | ||
| 100 | 8925 | 6635 | 5475 | 4720 | 4172 | 3747 | 16.44 | 0.39 | ||
| 150 | 11677 | 8673 | 7150 | 6159 | 5439 | 4882 | 19.55 | 0.27 | ||
Note:Calculations in the table are based on the fllowing assumptions:rock wool of a density of 120Kg/m³,glass wool of a density of 64kg/m³, thickness of front sheet 0.6mm,thickness of the back sheet 0.5mm,deflection span ratio L/100.
Standard Specifications
| Material | Thickness (mm) | Paint | Thickness of film | Decoration | Durability | GLOSTAR standard | |
| Aluminum sheet | Al-Mg-Mn Alloy Plate | 0.7-1.0mm | Inorganic PVDF on the front,self-cleaning surface | 25μm | 5 years without color deviation due to dust adhesion | No penetration caused by corrosion within 50 years | Aluminum products,excellent anti-rust ability can be used in humid environment |
| Color-Coated Steel Sheet | Strength G280/G300,AZ150 AI-Zinc coated steel coil | 0.6-0.8mm | Nano-particle reinforced PE on the front,Self-cleaning surface | 25μm | 5 years without color deviation due to dust adhesion,10 years before obvious chalking | No penetration caused by corrosion within 30 years | Selection of Bluescope,Baosteel quality products, corrosion resistance quality assurance |

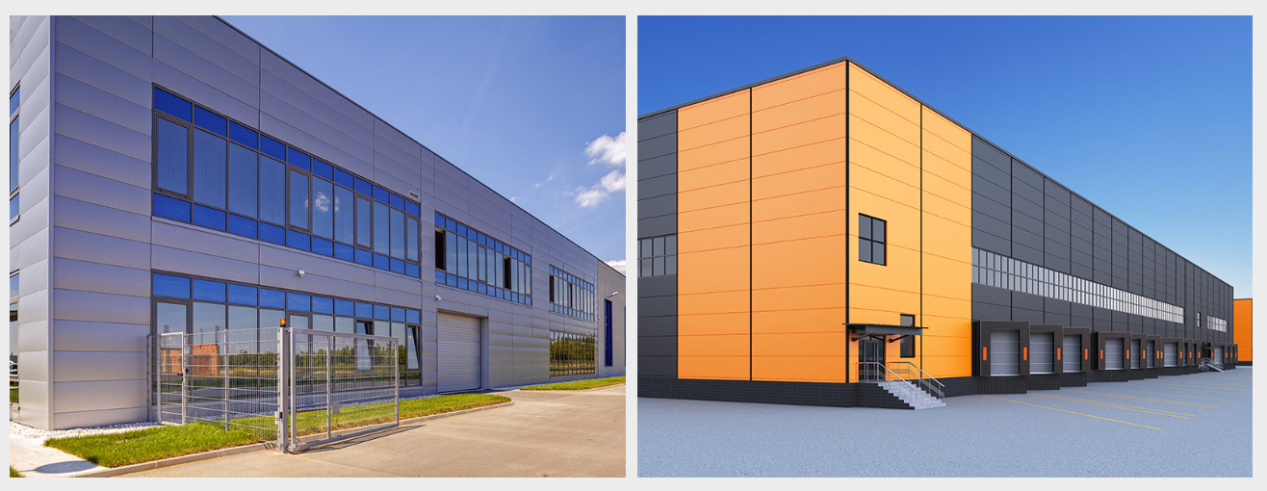

Applications
Core Competence
Process And Equipment
Both In-house developed and outside-sourced advanced equipment is in commission in our workshop.Moreover,the most intelligent au- tomatic production center in the prefabricated building industry is located in Glostar.we have also learned from foreign advanced design concepts and production processes,with which fast production rate and high product precision were achieved.Innovation is the ultimate driving force for our success.
Strict Testing
With years of rich experience and exceptional technical capabilities, the testing center conducts strict quality control on all products.To ensure the accuracy and soundness of testing,we introduce the most advanced experimental equipment in the industry,from raw materials to the end products.Every manufacturing step has passed the rigorous laboratory testing procedures and the final products must be presented to customers with perfect quality.
