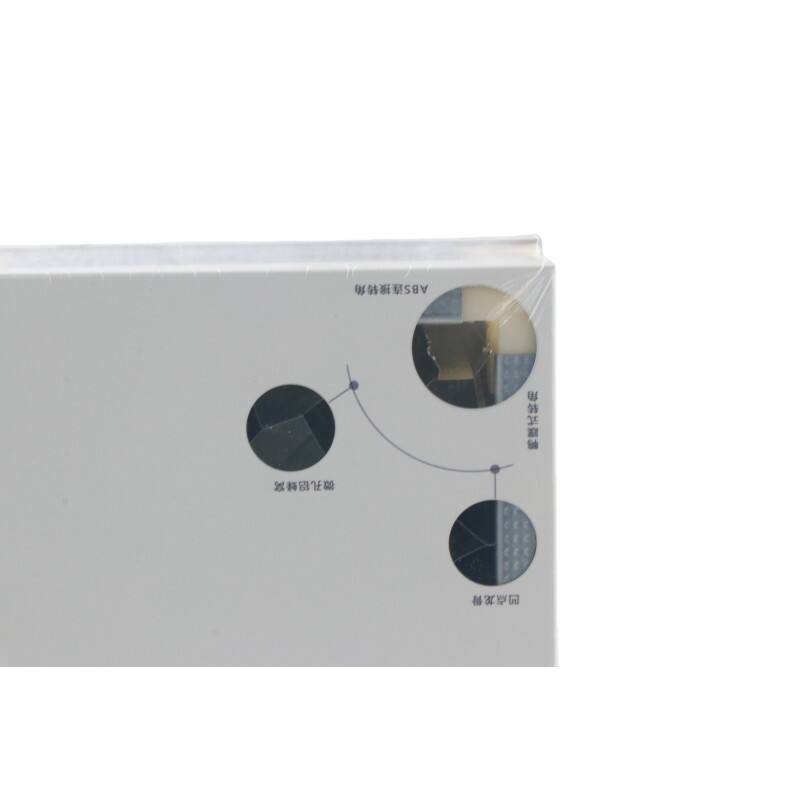

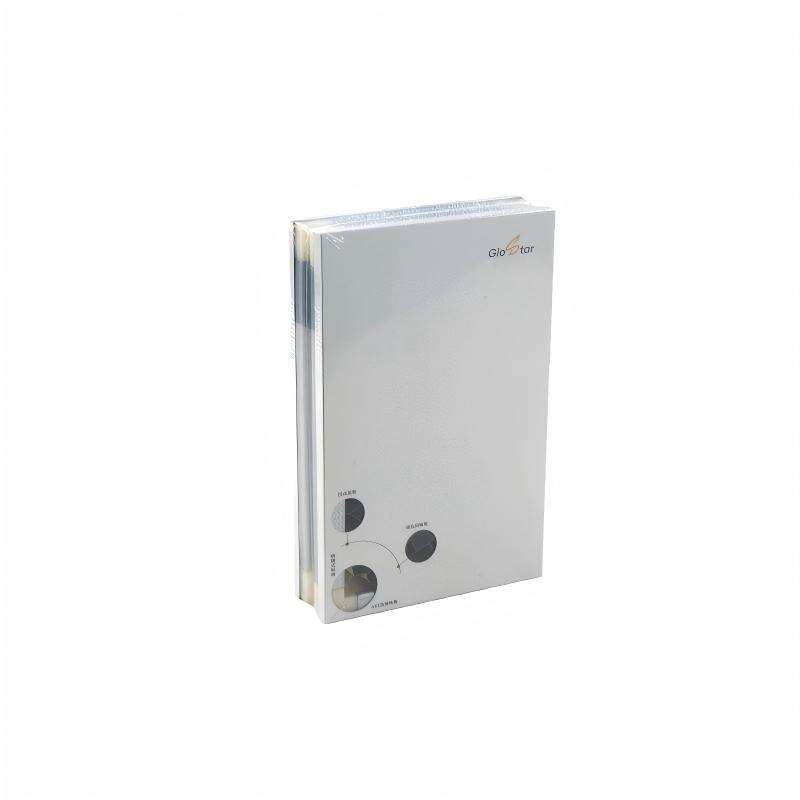

Aluminum Honeycomb Cleanroom Panel
Glostar manufacturer’s aluminum honeycomb cleanroom panel is an advanced sandwich composite material that perfectly meets current architectural needs. This product consists of a hexagonal aluminum honeycomb core bonded to two layers of high-strength aluminum panels using structural adhesive, applying aerospace-grade engineering technology to the commercial sector. It is specifically designed to overcome the limitations of solid aluminum panels and aluminum composite panels, enabling larger spans, better flatness, and significantly reduced weight.
- Overview
- Technical Specifications
- Applications
- Why Choose Us
- Recommended Products
Product details
Glostar factory’s Aluminum Honeycomb Cleanroom Panels are renowned for their exceptional surface flatness, effectively eliminating the "wavy" effect common in traditional metal curtain walls. They perform perfectly even under extreme conditions, boasting excellent high-temperature resistance and fire-retardant properties. Whether for high-rise building curtain walls, interior decoration, or rail transit applications, our aluminum honeycomb panels are a wise choice for modern engineering projects.
Key Performance Characteristics
Our Aluminum Honeycomb Panels are engineered to excel in four critical areas, making them superior to traditional building materials:
1. Ultra-Lightweight Construction
The defining feature of the honeycomb structure is its density. By volume, the core is 95-99% air, yet the geometry provides immense structural support.
Reduced Structural Load: Weighing significantly less than solid aluminum or steel panels of the same thickness, our panels reduce the dead load on the building’s structural frame. This allows for cost savings on the supporting skeleton and foundations.
Ease of Handling: Large-format panels can be installed with fewer personnel and lighter lifting equipment, speeding up the installation process.
2. High Strength & Toughness
Don't let the weight fool you. The hexagonal geometry acts like thousands of miniature I-beams dispersed across the panel.
Impact Resistance: The panel absorbs and disperses impact energy effectively, making it highly resilient against wind loads, physical impact, and vibration.
Rigidity: It possesses high bending stiffness. Even in large sizes (e.g., 2000mm x 6000mm), the panel maintains its shape and does not sag or warp, ensuring the integrity of the facade.
3. Superior Surface Flatness
One of the biggest challenges in metal facades is visual distortion. Our manufacturing process solves this.
Continuous Lamination: Produced using a continuous thermal lamination process, the skin is tightly bonded to the core under tension.
Visual Perfection: The result is a completely flat surface, even on large panels. This is critical for modern, high-end architectural aesthetics where light reflection and clean lines are paramount.
4. High-Temperature Stability
Environmental durability is key for exterior cladding.
Thermal Expansion Control: The aluminum skin and core conduct heat efficiently, preventing localized hotspots that cause warping. The structural adhesive used is formulated to withstand high temperatures without delamination.
Fire Resistance: Aluminum is non-combustible. Our panels can meet high fire ratings, making them safe for public buildings, airports, and tunnels.
Technical Specifications
| Panel thickness | 50mm 75mm 100mm |
| Recommended wall panel length | ≤4000mm |
| Recommended ceiling panel length | ≤3000mm |
| Fire resistance rating | ≥0.5h |
| Bending load capacity | ≥1.5KN/m² |
| Wall panel width | 100mm-1180mm |
| Sound insulation performance | 18dB |
| Integrated features | Concealed conduits and pre-fabricated hollow frames can be embedded. |
| Fire resistance rating | B1 |
| Panel widths | 980mm, 1180mm, 950mm, 1150mm |

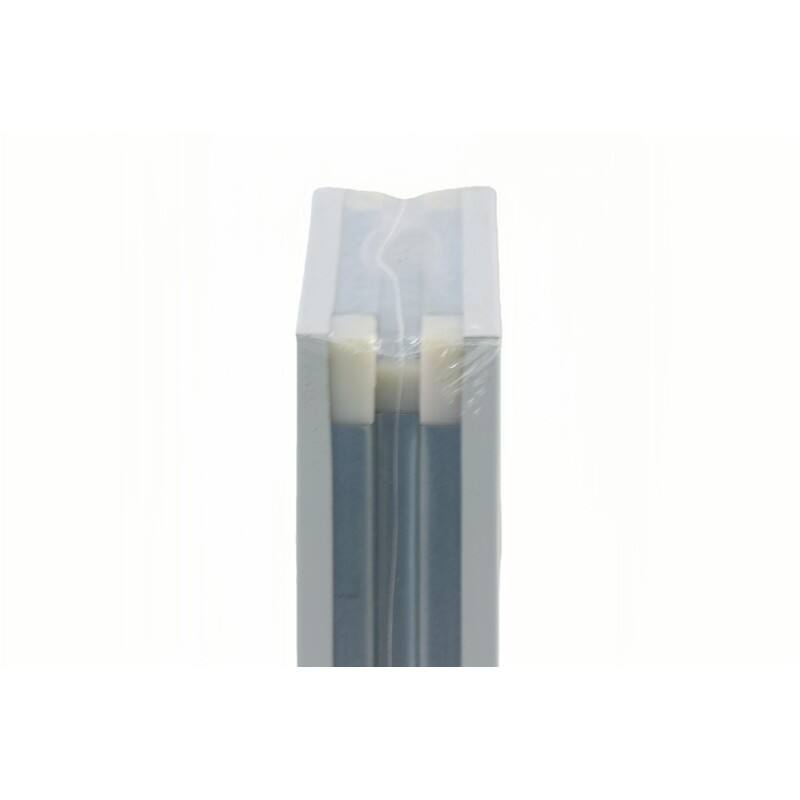

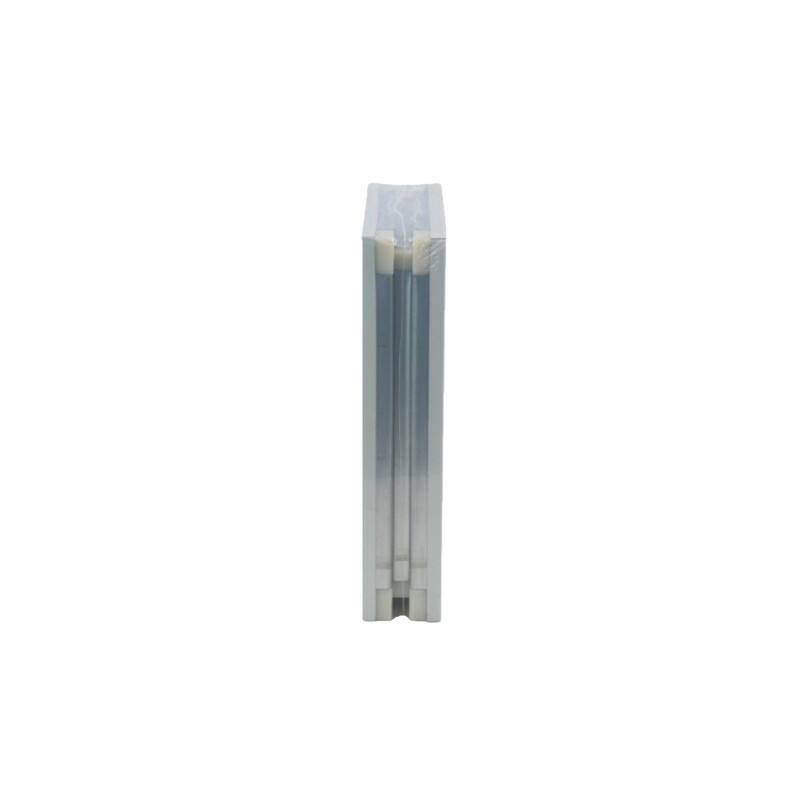

| Applicable panel type | Tongue-and-groove type, T-shaped type, recessed and protruding type |
| Honeycomb diameter | ≤21mm |
Applications
Due to its versatile properties, the aluminum honeycomb clean room panel is used across diverse industries:
• Architectural Cladding: Exterior curtain walls, roof overhangs, and canopy facades for airports, stadiums, and commercial centers.
• Interior Decoration: Ceiling panels, wall partitions, and elevator interiors where flatness and fire safety are required.

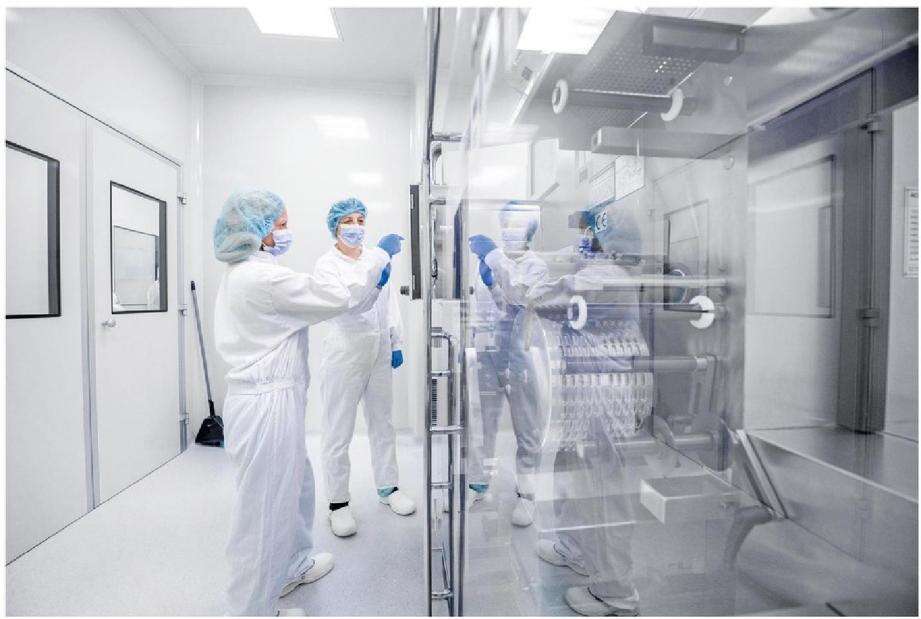

• Cleanroom Systems: Used as wall panels in electronics and pharmaceutical cleanrooms due to their non-shedding, anti-static, and easy-to-clean nature.
• Transportation: Interior walls, floors, and ceilings for High-Speed Rail (HSR), subways, cruise ships, and luxury yachts (reducing vehicle weight to save fuel).
• Industrial Use: Machine tool tables, printing platforms, and whiteboard surfaces.
Technical Composition & Manufacturing
The superiority of our Aluminum Honeycomb Panel lies in its "Sandwich" construction:
Top Skin: High-quality Aluminum Alloy coated with PVDF or FEVE paint. This provides weather resistance, UV protection, and color retention for over 15-20 years.
The Core: A hexagonal aluminum honeycomb core made from 3003 alloy foil. The cell size and foil thickness can be customized to adjust the strength-to-weight ratio.
The Adhesive: A high-polymer epoxy adhesive film specifically developed for aviation composites, ensuring a bond that is waterproof and heat-resistant.
Bottom Skin: Aluminum alloy sheet to balance the structure.
Why Choose Us
Customization: We don't just sell standard sheets. We offer edge closure, open edges, or special shapes curved panels based on your CAD drawings.
Sustainability: Aluminum is 100% recyclable. Our panels contribute to Green Building certifications by being durable, recyclable, and energy-efficient during transport.
Sound & Thermal Insulation: While the core is hollow, the air pockets create a barrier against sound transmission and heat transfer, contributing to a quieter and more energy-efficient building envelope.
FAQ (Frequently Asked Questions)
Q: Can Aluminum Honeycomb Panels be curved?
A: Yes, despite their high rigidity, we can produce curved or double-curved panels using specialized roll-forming techniques in the factory to fit unique architectural designs.
Q: How does the panel withstand high wind loads?
A: The honeycomb core provides excellent shear strength. When properly anchored with our recommended installation system, it can withstand typhoon-level wind loads, making it suitable for high-rise skyscrapers.
Q: What is the difference between this and Aluminum Composite Panel (ACP)?
A: ACP has a plastic (PE) or fire-retardant core and is generally thinner (4mm). Honeycomb panels have an aluminum core, are thicker (10mm-50mm), offer much higher flatness, better fire resistance, and are lighter per square meter at equivalent stiffness.
Q: Is the material waterproof?
A: Yes, aluminum is naturally corrosion-resistant. Combined with our PVDF coating, the panel is impervious to water, humidity, and mold, making it ideal for humid climates or cleanroom environments.
