TW Rock Wool Composite Sandwich Panel
TW Rock Wool Composite Sandwich Panel achieve varied surface textures through changes in panel structure and customizable convex and concave designs, enriching the facade effect of the wall. The design incorporates outward-protruding central seams and corner components, filled with insulation material, which improves insulation performance at these points while ensuring waterproofing. The color of the central seam can be designed separately, serving as a decorative element to enhance the overall aesthetic of the wall. The design also considers compatibility with other products in the series, enriching the visual effect of the wall and ensuring consistency at the corners.
- Overview
- Why "Protruding & Filled" Matters?
- Recommended Products
Product details
The TW Series Rock Wool Composite Panel redefines the visual potential of industrial cladding. By utilizing an innovative variable concave-convex structure, this system breaks the flatness of traditional walls, creating a facade rich in depth and texture. Featuring a patented protruding seam and corner component design filled with high-grade insulation, the TW Series not only guarantees exceptional waterproofing and thermal efficiency but also offers customizable joint colors for striking visual accents. It is the ultimate fusion of architectural creativity and building physics.
In modern architecture, the demand for building envelopes that perform technically while exciting visually is at an all-time high. The TW Series was developed to bridge this gap. Unlike standard flat sandwich panels, the TW Series allows for structural changes in the panel face, enabling variable concave and convex designs. This 3D capability transforms a building's exterior from a passive boundary into an active design element that interacts with sunlight to create shifting patterns of light and shadow throughout the day.
However, the TW Series is grounded in performance. It utilizes a high-density rock wool core for fire safety and is engineered with a unique protruding connection system. This system ensures that the aesthetic "bumps" and joints are not thermal weak points but are instead fortified zones of insulation and weather resistance.
Key Design & Performance Features
1. Variable Concave-Convex Surface Design
The defining characteristic of the TW Series is its flexibility in form.
3D Visual Depth: Through precise structural adjustments of the metal facing, the panel achieves a variable concave and convex geometry. This adds a sculptural quality to the wall, enriching the overall facade effect and moving away from the monotony of "box-like" industrial buildings.
Dynamic Aesthetics: The relief structure captures light at different angles, giving the building a rhythmic appearance that changes depending on the viewing angle and time of day.

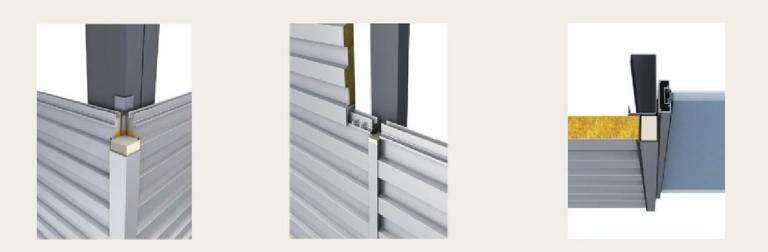

2. Innovative Protruding Seam & Corner Components
We have re-engineered the critical joints of the wall system.
Protruding Structure: The middle seams (joints) and corner components feature a specialized outward-protruding design. This is not merely aesthetic; it serves a crucial functional purpose.
Insulation Filling: Unlike traditional joints which can be sources of heat loss (thermal bridges), the interior of these protruding components is fully filled with insulation material.
Dual Protection: This design enhancement significantly improves the thermal insulation performance at the joints while providing a superior waterproof barrier. The protrusion acts as a natural water shed, preventing rain accumulation at the seal.
3. Customizable Accent Colors (The "Middle Seam" Design)
The TW Series turns the joint—usually something architects try to hide—into a design feature.
Color as a Design Tool: The color of the middle seam (the protruding joint) can be designed separately from the main panel color.
Visual Impact: Architects can choose contrasting colors to create bold vertical or horizontal lines, or matching colors for a subtle, textured look. This "pinstripe" effect serves as a powerful decoration, lifting the overall aesthetic level of the wall.
4. System Compatibility & Corner Consistency
A great facade requires a holistic approach.
Series Integration: The TW panel is designed to work seamlessly with our broader range of composite products. Whether mixing with flat panels or glass curtain walls, the connection nodes are compatible, allowing for rich, multi-textured wall effects.
Perfect Corners: The dedicated corner components ensure consistency at the turning points of the building. The lines flow uninterrupted around the building, maintaining the visual integrity of the concave-convex pattern without awkward cuts or gaps.
Why "Protruding & Filled" Matters?
In traditional sandwich panel construction, the joint is often the weakest link. It is where air leaks, water enters, and heat escapes.
The TW Series solves this triad of problems:
Thermal Performance: By filling the protruding joint with insulation, we maintain the R-value across the entire wall surface, eliminating cold spots that can lead to condensation.
Waterproofing: The physical shape of the protrusion acts as a primary defense against driving rain, while the internal seals provide the secondary defense.
Structural Strength: The geometry of the protruding seam adds rigidity to the panel connection, making the wall more resistant to wind loads.
The TW Series Rock Wool Composite Sandwich Panel represents a shift in thinking. It proves that a functional, fireproof, and insulated wall system can also be a canvas for artistic expression.
With its unique capability to customize surface depth and joint colors, combined with the technical superiority of its insulated protruding seams, the TW Series offers architects the freedom to design without compromise.
Elevate your building's facade. Contact us today to explore the design possibilities and technical specifications of the TW Series.
