Anti-static Glass Magnesium (MGO) Clean Room Wall Panel Factory Price
The steel coating of the Anti-static Glass Magnesium (MGO) Clean Room Wall Panel is specially infused with conductive materials, bringing its surface resistance within the range of 10⁶ to 10⁹ Ω/sq, thereby effectively eliminating the adverse effects caused by static electricity. Anti-static cleanroom panels are suitable for environments with stringent requirements for both static control and cleanliness—such as electronics manufacturing, the semiconductor industry, combustible gas handling, organic solvent operations, and the biotechnology sector.
- Overview
- Technical Specifications
- Applications & Project
- Why Buy Directly From Our Factory
- Recommended Products
Product details
- Superior Anti-Static Performance: Enhanced with a proprietary conductive coating, the panel surface maintains a resistance of 10⁶–10⁹ Ω/sq, preventing dust accumulation and electrostatic damage to sensitive equipment.
- Premium MGO Core (Glass Magnesium): Offers exceptional structural strength, impact resistance, and a Class A fireproof rating, maximizing safety in your facility.
- High Cleanliness Standard: The smooth, non-porous surface is easy to clean, highly resistant to corrosion, and prevents the growth of bacteria and mold.
- Cost-Effective Factory Price: As a direct manufacturer, we offer unbeatable wholesale pricing without compromising on premium quality, lowering your overall project construction costs.
- Easy & Fast Installation: The modular sandwich panel design allows for seamless joint connections, reducing labor time and ensuring excellent airtightness.
Upgrade your controlled environment with our premium Anti-static Glass Magnesium (MGO) Clean Room Wall Panels, available at competitive factory direct prices. Designed for industries where electrostatic discharge (ESD) and particle contamination can cause critical failures, these panels combine the superior fireproof strength of a Glass Magnesium (MGO) core with an advanced anti-static surface.
The steel sheet coating is enhanced with special conductive materials, achieving a consistent surface resistance of 10⁶–10⁹ Ω/sq. This effectively dissipates static electricity, eliminating adverse effects caused by static buildup and ensuring a safe, ultra-clean environment for your high-tech operations.
 |
 |
Key Features & Advantages
Technical Specifications
| Product Name | Anti-static Glass Magnesium (MGO) Clean Room Wall Panel Factory Price |
| Panel Thickness | 50mm, 75mm, 100mm, etc.(Customizable) |
| Recommended maximum length | ≤6000mm |
| Maximum length of ceiling panels | ≤5000mm |
| Wall panel width | 100mm-1180mm |
| Thermal insulation performance | 2.7 kcal/m²/h/°C |
| Sound insulation performance | 18 dB |
| Fire resistance limit | 1.0h |
| Fire rating | Class A1 |
| Thermal conductivity | 0.12W/m.K |
| Bending capacity | 2.71KN/m² |
| Color | Standard White-Grey (Custom RAL colors available) |

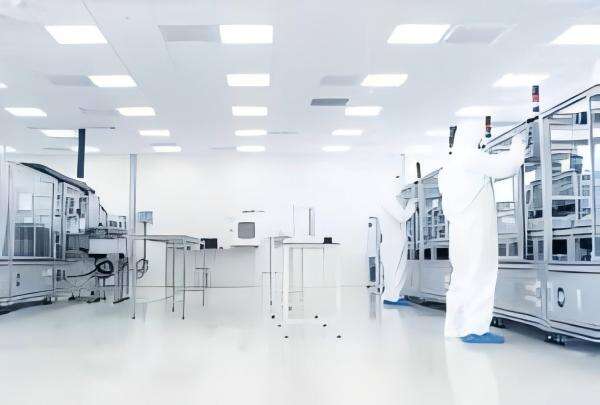

Applications & Project
Our Anti-static MGO Cleanroom Panels are specifically engineered for environments requiring rigorous static control and high cleanliness. They are the ideal building material for:
- Electronics Manufacturing: PCB assembly, microelectronics, and display manufacturing.
- Semiconductor Facilities: Wafer fabrication plants and chip testing labs.
- Combustible Gas & Organic Solvent Handling: Safe zones where static sparks could pose severe explosion risks.
- Biotechnology & Pharmaceuticals: Laboratories and production lines requiring sterile and dust-free conditions.
- Aerospace & Optical Instruments: Precision manufacturing cleanrooms.
In a previous project we undertook for the Goer Electronics factory in Qingdao, we utilized anti-static panels and magnesium-oxide rock wool cleanroom panels.
Why Buy Directly From Our Factory
When you choose our clean room wall panels, you are partnering directly with the source. We provide:
Strict Quality Control: Every batch of anti-static panels is tested for surface resistance and structural integrity before shipping.
Customization: Tailored dimensions, colors, and core thicknesses to meet your specific cleanroom blueprint.
Global Shipping & Support: Fast lead times and professional exporting packaging to ensure your panels arrive safely anywhere in the world.
