PVR1000 Metal Thermal Insulated Roof System
PVR1000 Metal Thermal Insulated Roof System uses a seamer or seam locker machine to interlock adjacent metal roof panels longi- tudinally to form a tightly connected rigid roofing system.Special non-penetrating conversion fixtures are employed for installing solar modules,snow guards,or hurricane protection devices to meet vari- ous functional requirements.
- Overview
- Technical Specifications
- Applicable Scenarios
- FAQ
- Recommended Products
Product details
The PVR1000 roofing system is a high-performance building envelope solution. This system utilizes advanced mechanical interlocking technology to tightly interlock metal panels longitudinally, creating a structurally sound and exceptionally rigid integrated roof. Furthermore, its unique non-penetrating connection technology perfectly integrates with photovoltaic, snow guard, and wind uplift systems, making it an ideal choice for modern industrial and commercial buildings.
Performance Features
360° upright lock seam connection
1. Adjacent edges are vertically rolled by 360°to form an interlocked seam
2. Concealed connection seams and double-folded edge locking create a seamless roof structure, providing excellent waterproofing, leak prevention, and wind resistance.
3. Seams are automatically locked by the machine,so the installation process is easy.Capillary action is avoided by a specially designed structure and the whole system is perfectly sealed.
High strength

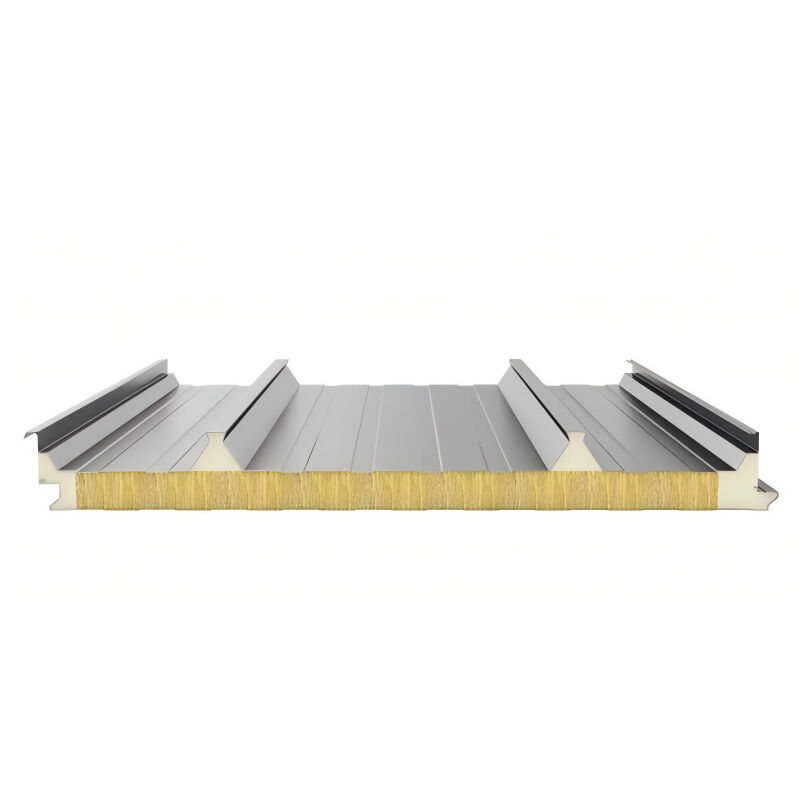

· In addition to reinforced beams on both sides,there are 3 ridges on the sheets to give the roof more load capacity.
· The metal roof panels are connected to the purlins via brackets. The unique concealed bracket structure enhances installation strength and eliminates the need to penetrate the roof surface. Wind, frost, rain, snow, and negative wind pressure loads are all safely absorbed.
Safe to use

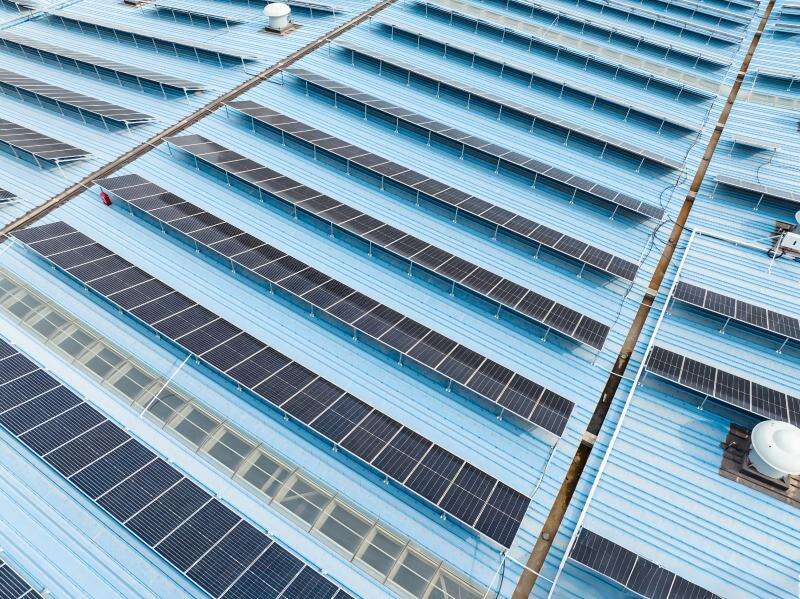

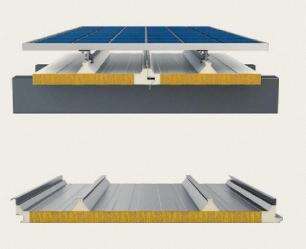

· The crests of the roof profile match the curvature of the specialized adapter clips, facilitating the installation of the adapter clips. Solar photovoltaic systems, snow guard systems, or typhoon protection devices can be installed as needed without damaging the roof, maintaining the integrity and watertightness of the roof panels.
· The roofing system is closely connected to the overall structural lightning protection system, directing lightning strikes to the ground and preventing lightning from penetrating the metal roof and entering the building. This effectively eliminates the problems of lightning damage and static electricity buildup.
Technical Specifications
Material Characteristics Table for PVR1000 metal thermal insulated roof system.
| Size(mm) | Standard size: 1000 | Suggested length:< 15000 | Standard thickness:50,60,75,80,100,150 (other customized) |
| Surface pattern | 3 ridges | ||
| Skin thickness (mm) | Front steel sheet:0.5-0.8 | Back steel sheet:0.4-0.6 | |
| Type of joint | Adjacent edges are vertically rolled by 360° to form an interlocked seam | ||
| Core material type | PU and glass wool | PU and rock woo | |
| Core material density(Kg/m³) | Glass wool:64 | Rockwool:100-140 | |
| Flammability | Class A |
Table of Load without extra support and thermal performance specifics for PVR1000 photovoltaic metal thermal insulated roof system.
| Core material | Thickness (mm) | Type of Support | Load(KN/m2)/rafter spacing(mm) | Panel weigh(Kg/m2) | Thermal conductivity(W/m2`k) | |||||
| 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | |||||
| Rock wool | 50 | Single-span/multi-span | 5825 | 4403 | 3688 | 3223 | 2886 | 2623 | 16.62 | 0.76 |
| 75 | 7259 | 5450 | 4537 | 3944 | 3512 | 3177 | 19.47 | 0.53 | ||
| 80 | 7528 | 5647 | 4696 | 4079 | 3629 | 3281 | 20.03 | 0.50 | ||
| 100 | 8561 | 6403 | 5311 | 4602 | 4085 | 3685 | 22.31 | 0.40 | ||
| 120 | 9545 | 7129 | 5906 | 5111 | 4533 | 4085 | 24.58 | 0.34 | ||
| 150 | 10967 | 8195 | 6793 | 5882 | 5219 | 4705 | 27.99 | 0.27 | ||
| Glass wool | 50 | Single-span/multi-span | 5736 | 4293 | 3563 | 3089 | 2744 | 2476 | 14.06 | 0.74 |
| 75 | 7133 | 5294 | 4362 | 3756 | 3315 | 2974 | 15.62 | 0.52 | ||
| 80 | 7394 | 5482 | 4511 | 3880 | 3422 | 3068 | 15.93 | 0.49 | ||
| 100 | 8402 | 6206 | 5091 | 4366 | 3840 | 3434 | 17.18 | 0.39 | ||
| 120 | 9364 | 6905 | 5656 | 4844 | 4255 | 3800 | 18.43 | 0.33 | ||
Product Advantages
| Core Advantages | Detailed Description |
| Superior wind resistance | The mechanical lock-seam structure creates strong panel tension, making it resistant to strong winds. |
| Excellent waterproofing | Continuous longitudinal lock seams combined with non-penetrating installation completely eliminate leakage points. |
| Versatile functionality | Easy installation of photovoltaic panels, snow guards, and wind-resistant facilities to meet future upgrade needs. |
| Efficient construction | Mechanized construction ensures fast installation speed and consistent, stable quality. |
Applicable Scenarios

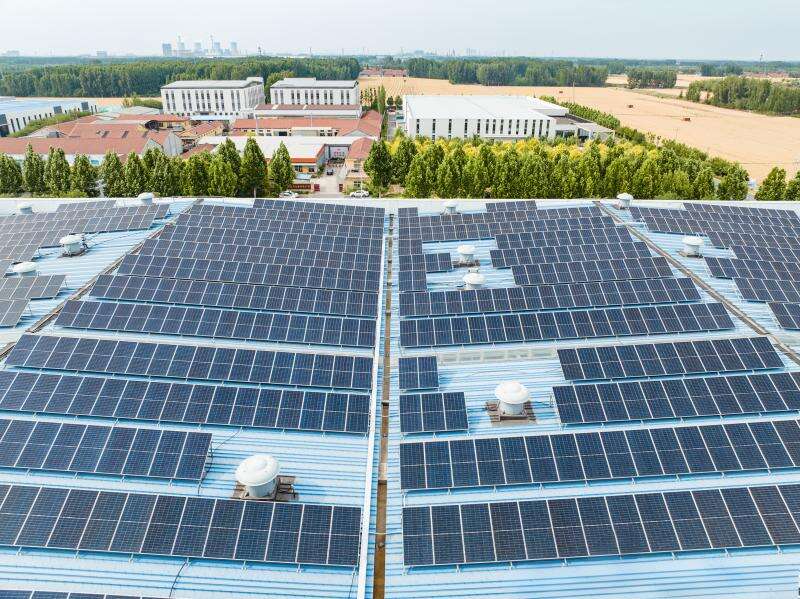

Large industrial plants
Logistics and warehousing centers
Airport terminals and train stations
Sports stadiums and exhibition centers
Existing rooftop photovoltaic renovation projects
FAQ
Q1: What is the PVR1000 metal insulated roofing system?
A: PVR1000 is a building envelope system specifically designed to support power plants. It is not just an ordinary metal roof panel, but a comprehensive roofing solution that integrates a high-efficiency thermal insulation layer, high-strength metal panels, and dedicated mounting interfaces. Its core advantage lies in the ability to install modules without penetrating the roof, achieving a perfect integration of building and technology.
Q2: What types of buildings are suitable for PVR1000?
A: This system is widely applicable to large industrial plants, logistics and warehousing centers, airport terminals, train stations, and public venues. It is particularly suitable for large-span steel structure buildings that require rooftop power generation and have high demands for waterproofing and thermal insulation.
Q3: How is the waterproofing performance of the PVR1000 system?
A: Excellent.
Q4: Does the roof require special maintenance?
A: Regular inspections are required.
