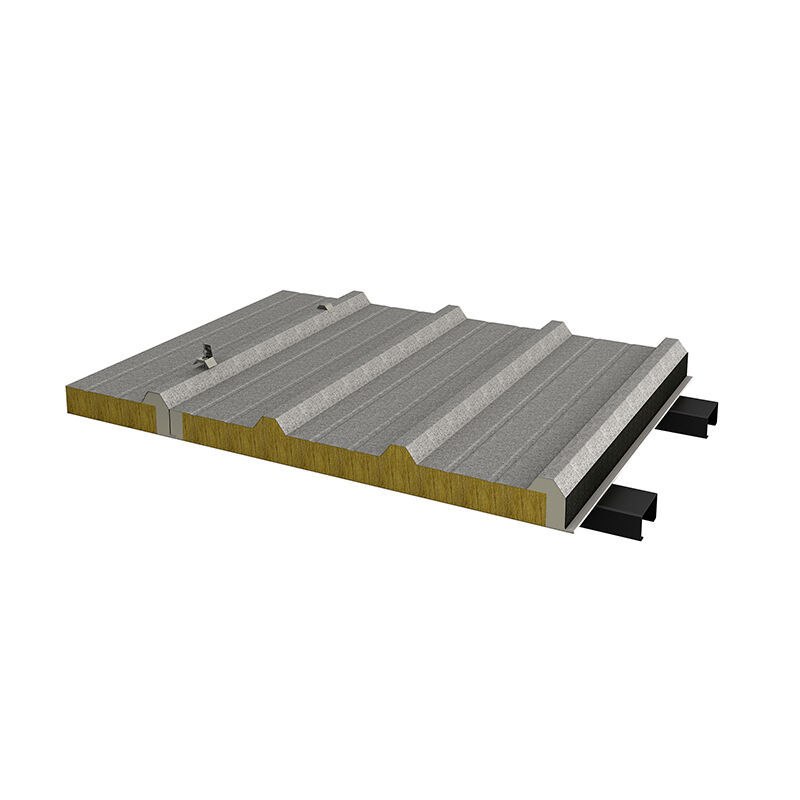

SR1000 Metal Thermal Insulated Roof Sandwich Panel System
The
- Overview
- Technical Specifications
- Product Application
- Recommended Products
Product details
Excellent Thermal Insulation: The high-quality core material significantly reduces heat transfer, lowering energy consumption for heating and cooling.

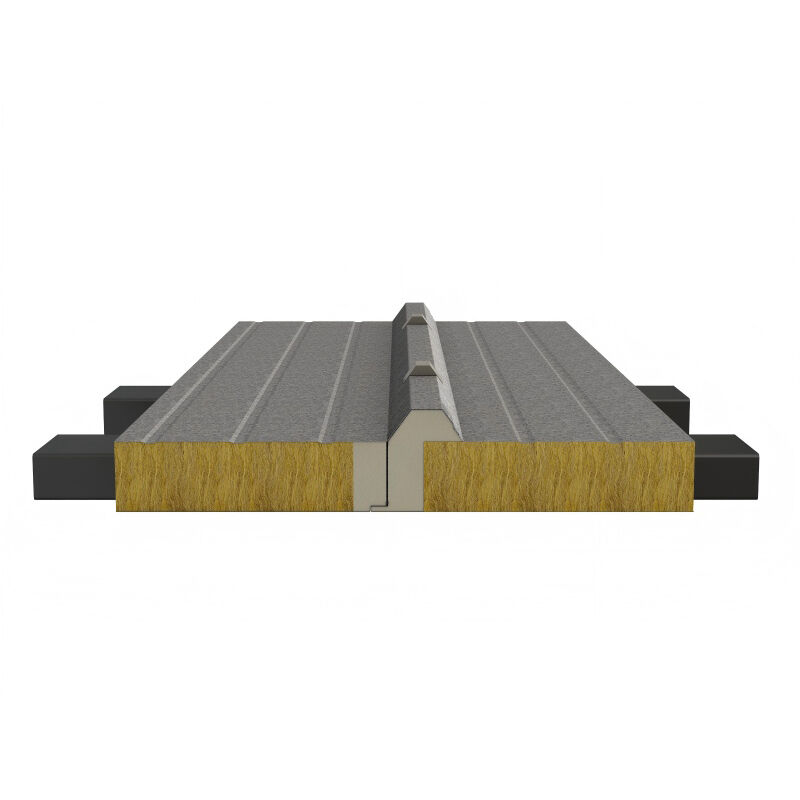

Superior Waterproofing: The SR1000 profile utilizes a specially designed overlap joint and deep ribs to prevent water leakage, even during heavy rainfall.Fire Resistance: Available with Fire-rated cores (such as Glasswool or Rockwool) to meet strict international fire safety standards (A grade).High Strength & Durability: Reinforced with high-tensile galvanized or galvalume steel sheets, providing resistance against wind loads and corrosion.Easy & Fast Installation: The lightweight modular design allows for quick assembly, reducing construction time and labor costs by up to 40%.Aesthetic Appeal: Available in a variety of RAL colors and coatings (PE, PVDF, HDP) to match your building's architectural style.

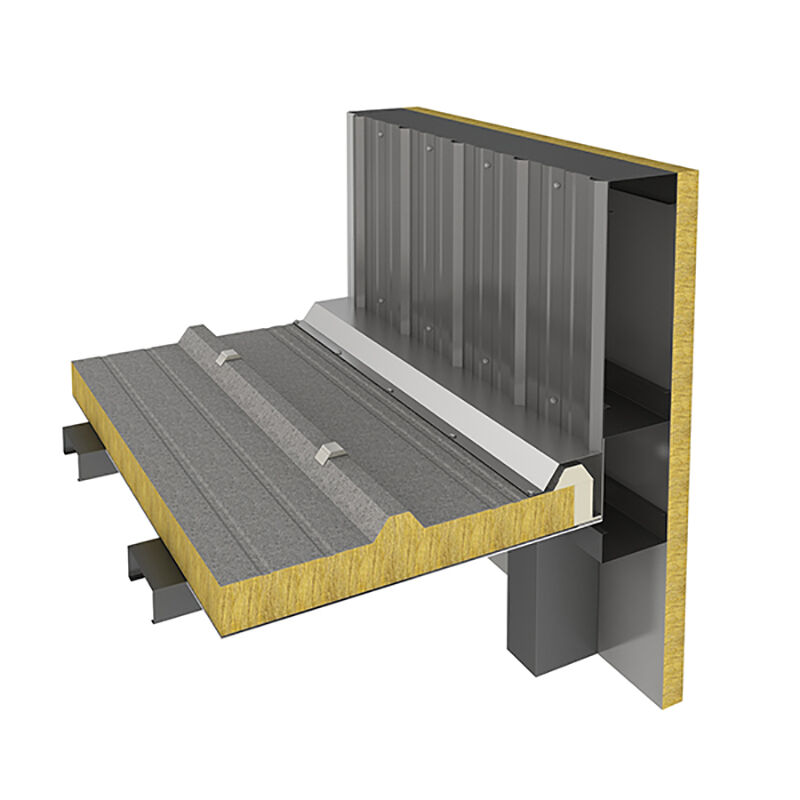

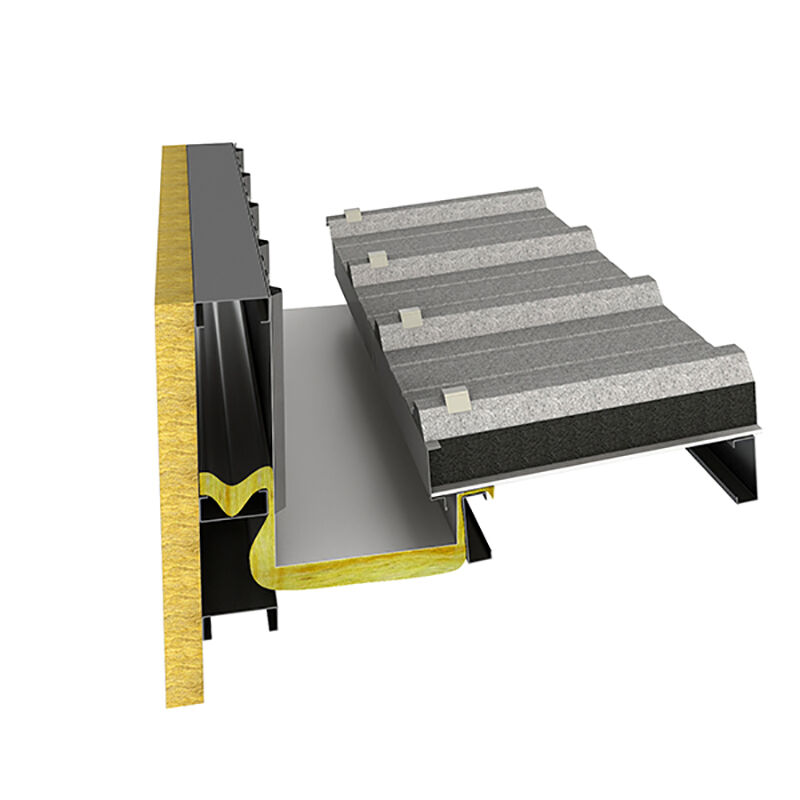

The SR1000 Metal Thermal Insulated Roof Sandwich Panel System is a high-end composite roofing system that integrates insulation, waterproofing, and load-bearing capabilities. This system uses advanced online equipment to composite the outer steel plate with high-quality insulation core material. It not only solves the problem of separation between traditional roofing insulation and waterproofing, but also provides a flat and sturdy installation base for rooftop photovoltaic modules through its unique PU side sealing technology and high-profile design. It is the preferred enclosure solution for industrial plants, logistics centers, and green energy-efficient buildings.
Performance Features
Technical Specifications
Material Characteristics Table
| Size(mm) | Standard panel width: 1000 mm |
| Optional panel width: 350~500 mm | |
| Panel length: ≤ 15000 mm | |
| Standard panel thickness: 50, 75, 100, 150 mm (other sizes available upon request) | |
| Surface pattern | Triple-wave corrugated profile |
| Skin thickness(mm) | Outer steel sheet: 0.5-0.7 mm |
| Inner steel sheet: 0.4-0.6 mm | |
| Joint width(mm) | Overlap joint |
| Core material | PU + Fiberglass wool, PU + Rock wool |
| Core material density(Kg/m3) | Fiberglass wool density: 64 kg/m³; Rock wool density: 100~140 kg/m³ |
| Flammability | Class A |
Performance Selection Table
| Core material | Thickness (mm) | Type of Support | Load(KN/m2)/rafter spacing(mm) | Panel weigh(Kg/m2) | Thermal conductivity(W/m2`k) | |||||
| 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |||||
| Rock wool | 50 | Single-span/multi-span | 5772 | 4135 | 3303 | 2765 | 2381 | 2089 | 15.53 | 0.76 |
| 75 | 7176 | 5068 | 3999 | 3313 | 2827 | 2462 | 18.37 | 0.53 | ||
| 100 | 8449 | 5919 | 4637 | 3820 | 3244 | 2814 | 21.21 | 0.4 | ||
| 150 | 10865 | 7600 | 5948 | 4895 | 4154 | 3601 | 26.89 | 0.27 | ||
| Glass wool | 50 | Single-span/multi-span | 5866 | 4248 | 3425 | 2892 | 2508 | 2214 | 12.96 | 0.6 |
| 75 | 7308 | 5226 | 4167 | 3484 | 2996 | 2626 | 14.51 | 0.41 | ||
| 100 | 8616 | 6116 | 4846 | 4030 | 3449 | 3011 | 16.06 | 0.31 | ||
| 150 | 11082 | 7857 | 6219 | 5167 | 4418 | 3855 | 19.16 | 0.21 | ||
Note: The data in the table is calculated based on core materials of rock wool (120 kg/m³) and glass wool (64 kg/m³), with the upper panel being a 0.6 mm thick steel plate and the lower panel a 0.5 mm thick steel plate; the deflection-to-span ratio limit is L/200.
Product Application
• rooftop projects (suitable for high load-bearing capacity)

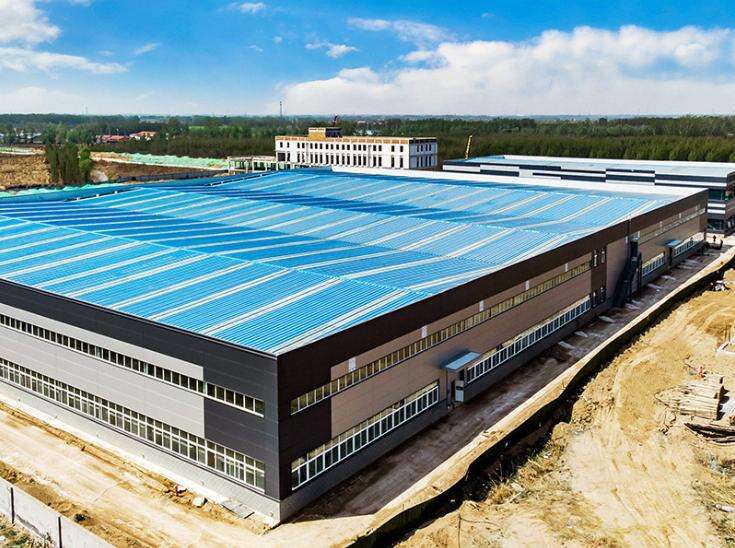

• Industrial plants with high requirements for thermal insulation and energy saving
• Large-scale warehousing, logistics, and cold chain centers
• Commercial complexes and public buildings
SR1000 Metal Thermal Insulated Roof Sandwich Panel System– making roofs stronger and buildings more energy-efficient. Contact us now for detailed drawings and pricing!
