High-Performance Cleanroom FFU Panel
Designed specifically for modern cleanrooms, our High-Performance FFU cleanroom panels feature an innovative structural design that achieves the optimal balance of weight and strength while ensuring extremely high dimensional accuracy. They are anti-static and recyclable, providing a safer and more environmentally friendly sealing solution for your cleanroom.
· Novel structural design, high dimensional accuracy, and resistance to deformation
· Lightweight and high strength
· Good antistatic properties
· Recyclable
- Overview
- Technical Specifications
- Applications
- FAQ
- Recommended Products
Product details
Key Features

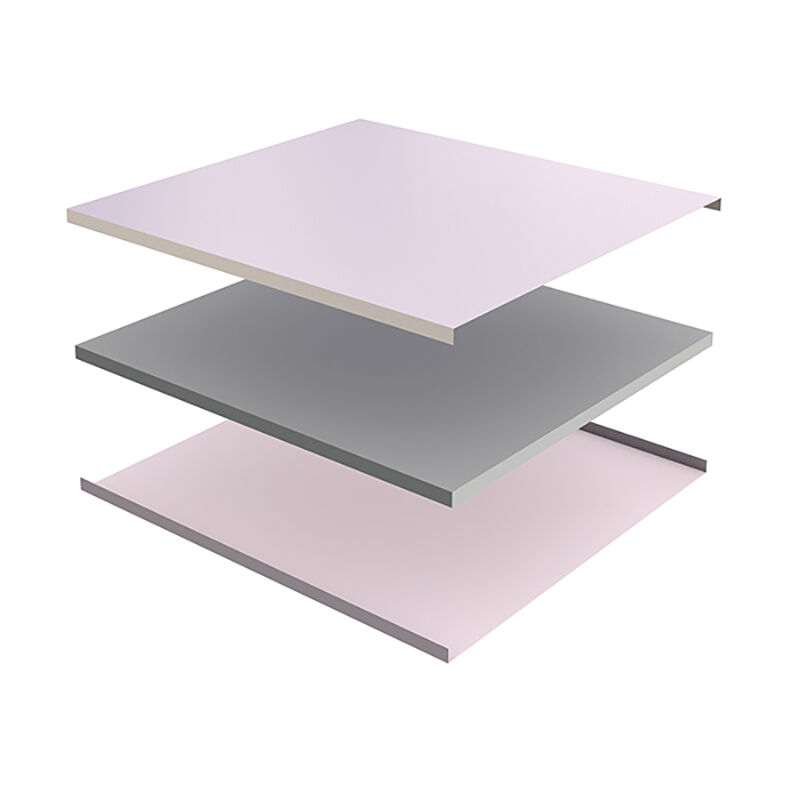

01. Innovative Structural Design, Resisting Deformation
We understand the importance of ceiling flatness for airflow control. This product abandons the structural defects of traditional blanking panels and adopts a brand-new reinforced internal support structure.
High dimensional accuracy: Tolerance is controlled within a very small range, ensuring a perfect fit with the FFU keel system and eliminating the risk of air leakage.
Long-term stability: Even with long-term use in cleanroom environments with pressure differences, the panel surface remains flat and will not sag or warp.
02. Lightweight and High Strength
Thanks to advanced material technology, we have significantly reduced the product's weight while increasing its overall load-bearing strength.
Reduced building load: Significantly reduces the load-bearing pressure on the ceiling keel system, improving overall safety.
Easy single-person installation: Compared to traditional heavy blanking panels, construction personnel can easily handle and install them, significantly shortening the construction period and reducing labor costs.
03. Excellent Electrostatic Discharge Performance
Designed specifically for semiconductor, microelectronics, and precision instrument manufacturing environments.
The product surface is specially treated for electrostatic discharge (or uses conductive materials), effectively preventing static electricity accumulation, protecting sensitive electronic components from ESD damage, and reducing the possibility of dust accumulation due to static electricity, thus maintaining cleanliness.
04. Environmental Protection and Sustainability
In response to the call for green manufacturing, this product was designed with full life cycle management in mind from the outset.
Recyclable: The material is durable, easy to clean and disassemble. When the cleanroom layout is adjusted or renovated, this blanking panel can be reused, saving you the cost of secondary purchases.
Green materials: The main materials are fully recyclable, reducing industrial waste.
Technical Specifications
| Product Model | 600mm | 1200mm | Non-standard customization |
| Effective Coverage Width | 600*600mm | 1200*1200mm | Actual customized area |
| Steel Plate Thickness | 0.4-0.8mm | ||
| Core Material | Gypsum, Magnesium oxide, Aluminum honeycomb, Aluminum corrugated sheet | ||
| Length | 1200mm (Suggested maximum length for wall panels) | ||

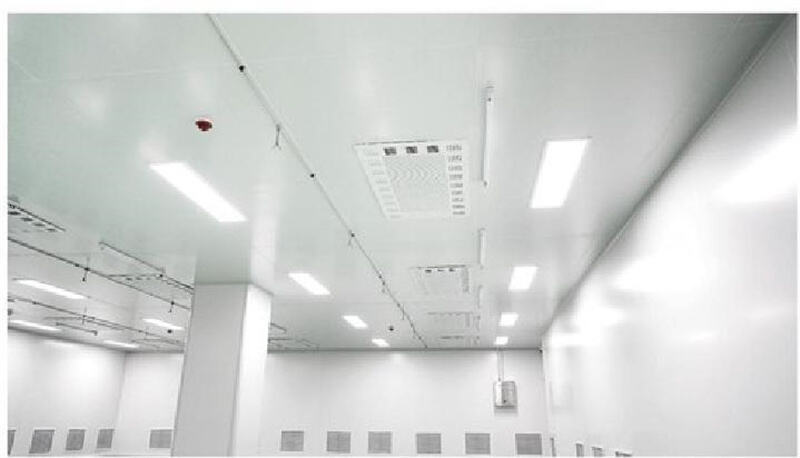

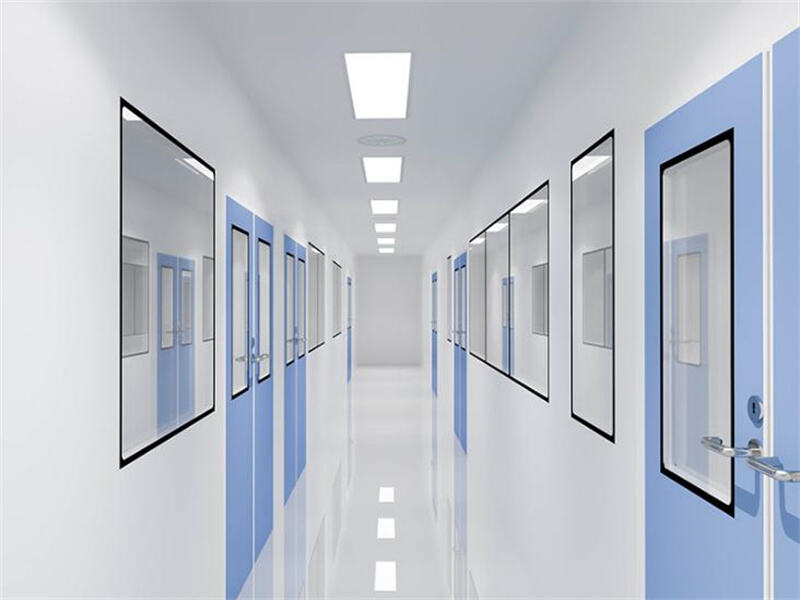

Applications
This product is widely used in industries with strict requirements for air cleanliness, anti-static properties, and fire resistance:
• Semiconductor and chip manufacturing
• TFT-LCD / Panel optoelectronics industry
• Microelectronics and precision instruments

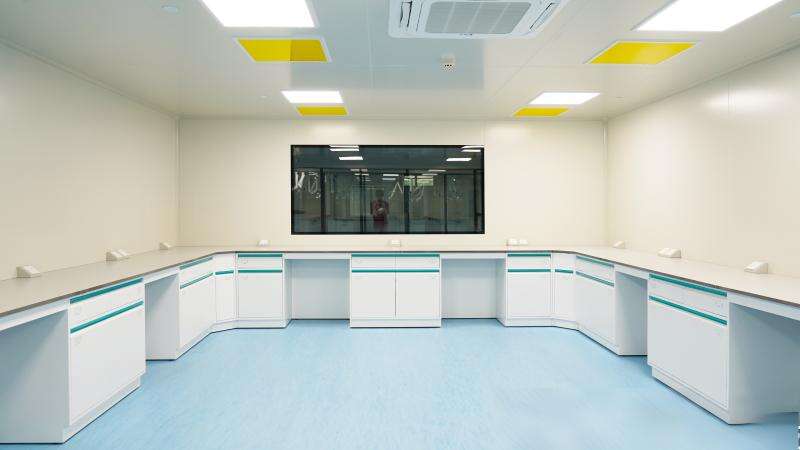

• Biopharmaceuticals and medical devices
• Food processing sterile workshops
FAQ
Q: Which keel system is this FFU blanking panel suitable for?
A: Our blanking panel design offers high compatibility and is suitable for most standard cleanroom ceiling grid systems. If you have specific size requirements, we support custom orders.
Q: What exactly does "resistant to deformation" mean?
A: "Resistant to deformation" means it remains flat under its own weight and normal pressure differences.
Upgrade your cleanroom ceiling solution!
Looking for a cost-effective, easy-to-install, and durable FFU blanking panel? Contact our engineering experts today for free samples or a project quote.
