Galvanized Z-shaped Steel Structure Purlin
Our Galvanized Z-shaped Steel Structure Purlin is engineered for maximum structural efficiency in large-scale steel buildings. Manufactured from high-tensile cold-rolled steel, the Z-profile allows for overlapping (nesting) at supports. This unique feature transforms the purlins into a continuous beam system, significantly increasing the load-bearing capacity and allowing for wider spans compared to standard C purlins. Ideal for factories, warehouses, and heavy-duty industrial roofing, our Z section purlins are hot-dip galvanized to ensure superior corrosion resistance, meeting international building standards (ASTM, EN, GB).
- Overview
- Technical Specifications
- Applicable Scenarios
- Manufacturing & Quality Control
- Recommended Products
Product details
- Continuous Span Capability: The geometry allows one Z purlin to fit inside another (overlap) at the columns. This continuity reduces deflection and increases structural strength.
- High Corrosion Resistance: Coated with a heavy zinc layer (Z180 - Z275 / G60 - G90), our galvanized Z purlins resist rust even in humid or acidic environments.
- Cost-Effective Design: Because Z purlins are stronger when overlapped, you can often use a lighter gauge or increase the distance between frames, saving on total steel tonnage.

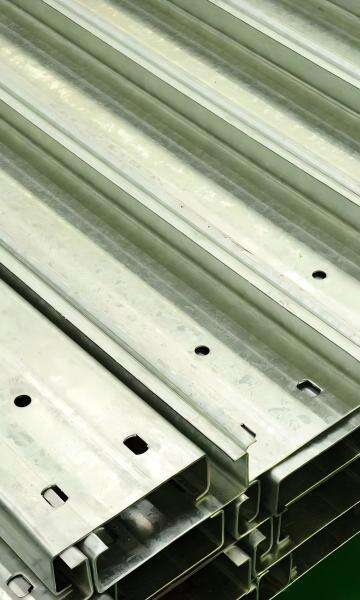

- Easy Installation: We provide pre-punched holes (round or elongated) tailored to your design, eliminating on-site drilling and speeding up erection.
- Precision Formed: Produced by fully automated roll-forming lines to ensure exact angles and straightness for perfect alignment.
- Z Purlins: Can be overlapped to create a continuous beam. This makes them ideal for buildings with large spans and heavy roof loads. They are slightly more efficient structurally for multi-bay buildings.
- C Purlins: Are independent and simply supported. They are excellent for smaller spans, door framing, and wall girts where overlapping is not required.
Why Choose Our Z-Shaped Steel Purlins?
Difference Between Z Purlin and C Purlin
Choosing the right profile is critical for your steel structure:
Note: Z purlins can be packed more tightly for shipping, saving freight costs.
Technical Specifications
We offer a wide range of sizes to meet your structural engineering requirements.
| Parameter | Specification Details |
| Product Name | Galvanized Z-shaped Steel Structure Purlin |
| Material (Main Structure) | Q235B, Q355B, Q345B, Q355 |
| Service Life | More than 5 years / 30–50 years / Main structure 35–50 years |
| Wind Load | 100 KM/H or Customized |
| Crane Capacity (if applicable) | 5MT, 10MT, 15MT, etc. |
| Project Solution Capability | 3D Model Design, Others |
| Drawing Types | Plan, Elevation, 3D, Shop Drawings |
| Surface Treatment | Hot Dip Galvanized |
| Angle | Standard 90 degrees or customized |
| Standard | GB, ASTM, AUS, etc. |
Applicable Scenarios
Our Galvanized Z-shaped Steel Structure Purlins are widely used in:
Industrial Buildings: Roof framing for large-span workshops and warehouses.
Agricultural Structures: Poultry sheds and barns requiring corrosion-resistant steel.
Solar Mounting Structures: High-strength supports for solar panel racking systems.
Exhibition Halls & Markets: Steel frameworks requiring wide column spacing.
Manufacturing & Quality Control
- Raw Material: We source steel coils only from top-tier mills to ensure consistent thickness and zinc coating adhesion.
- Punching Accuracy: Computer-controlled punching ensures hole positions are accurate within ±1% or ±3%.
- Inspection: Every batch is tested for tensile strength, zinc coating thickness, and dimensional tolerance before shipment.
Frequently Asked Questions
Q: What is the recommended overlap length for Z purlins?
A: The overlap length typically ranges from 600mm to 1000mm depending on the span and load calculations. Our engineers can assist with the specific design requirements.
Q: Can you produce Z purlins with unequal flanges?
A: Yes, standard Z purlins often have one flange slightly broader than the other to facilitate nesting (lapping). We can manufacture to your exact specifications.
Q: How are the purlins packed for export?
A: We stack the Z purlins in nested bundles to maximize container space and reduce shipping costs. They are secured with steel straps and can be placed on wooden blocks for easy forklift unloading.
Get a Quote for Galvanized Z Purlins
Looking for reliable Z-shaped Steel Structure Purlins for your next project? Contact Us today. We provide factory-direct pricing, custom sizes, and fast global delivery.
