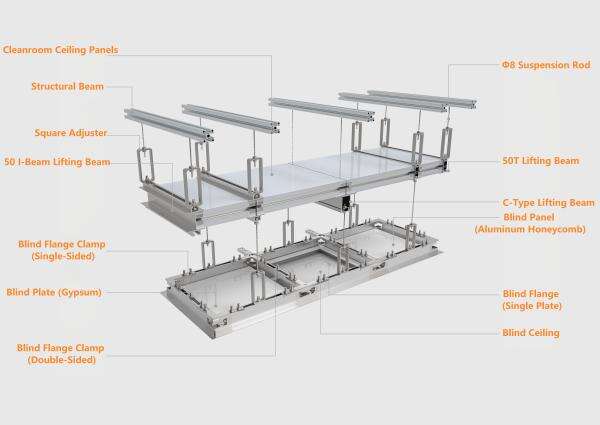

Cleanroom Double-Layer Ceiling Grid System
Engineered for the demands of high-precision manufacturing environments, Glostar's Cleanroom Double-Layer Ceiling Grid System provides a robust and reliable structural foundation for FFU (Fan Filter Unit) installations. The double-layer design delivers exceptional load-bearing performance, ensuring the ceiling structure remains stable and secure even under continuous mechanical load — making it the trusted choice for semiconductor fabrication, electronics assembly, and pharmaceutical cleanrooms where structural integrity cannot be compromised.
- Overview
- Recommended Products
Product details
High Load-Bearing Capacity
Purpose-Built for FFU Integration
Custom Sizing to Fit Real Site Conditions
Prefabricated Modular Assembly
Safe and Durable Construction
Cleanroom Double-Layer Ceiling Grid System's component is factory-prefabricated and sized to match actual on-site conditions, enabling fast, accurate modular assembly that minimizes construction time and reduces on-site errors.
Key Features
The double-layer grid structure is engineered to support the full weight of FFU units, lighting systems, and ancillary equipment simultaneously. Structural steel members are precision-formed to maintain dimensional accuracy under sustained load.
Grid module dimensions are coordinated with standard FFU footprints, allowing seamless equipment integration without field modification. Suitable for both single-layer and staggered FFU configurations.
Panel and grid dimensions are fully customizable based on your cleanroom layout drawings. Factory fabrication to exact specifications eliminates on-site cutting and material waste.
All components arrive pre-cut and pre-labeled for rapid installation. The modular system significantly shortens construction schedules and supports phased expansion or future reconfiguration.
Fabricated from high-strength galvanized steel with corrosion-resistant surface treatment. Meets cleanroom structural safety standards for long-term, maintenance-free performance.
Technical Specifications
| Parameter | Details |
| Structure Type | Double-layer suspended grid system |
| Primary Material | Hot-dip galvanized steel / Stainless steel (optional) |
| Load Capacity | Customized to project FFU load requirements |
| Grid Module Size | Customizable |
| Compatible Equipment | Standard FFU units, lighting fixtures, air supply terminals |
| Applicable Cleanroom Class | ISO Class 4–8 |
Detailed structural drawings and load calculations available upon request.

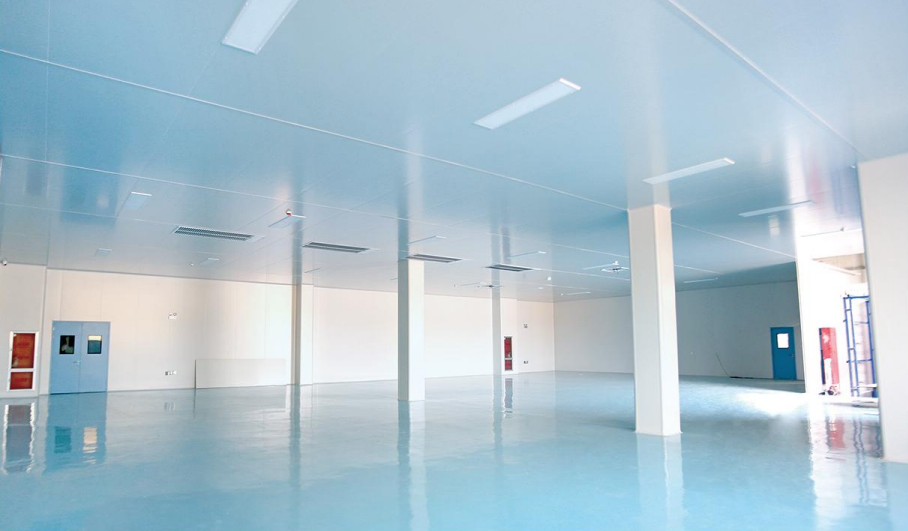

Applications
1.Semiconductor & Electronics Manufacturing — Supports high-density FFU arrays required for ISO Class 5–7 cleanrooms
2.Pharmaceutical & Biotech Facilities — GMP-compliant ceiling structures for sterile manufacturing and filling lines
3.Precision Optics & Medical Devices — Stable, vibration-resistant overhead systems for sensitive production environments
4.Food & Beverage Processing — Hygienic ceiling grid solutions for controlled-atmosphere production zones
Ready to Build Your Cleanroom?
Share your floor plan and FFU layout with our engineering team. We'll provide a customized grid system design, structural load verification, and factory-direct pricing — at no cost.
