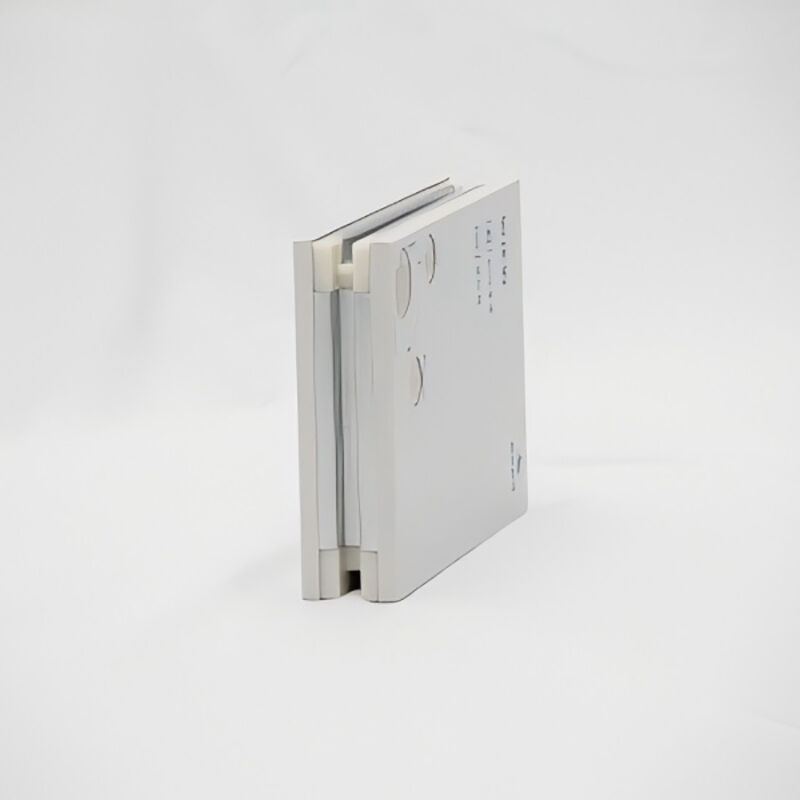

Magnesium Oxide Rock Wool Cleanroom Panel
Glostar’s supplier high quality Magnesium Oxide Rock Wool Cleanroom Panels are a versatile and high-performance building material designed for use in environments that require strict control over temperature, humidity, and air quality. These panels offer outstanding fire resistance, strength, and durability, making them ideal for modern construction projects, particularly in industries like pharmaceuticals, electronics, and food processing. With superior thermal insulation and moisture resistance, these panels provide a reliable solution for cleanrooms and other critical environments.
- Overview
- Technical Specifications
- Applications
- Why Choose Us
- Recommended Products
Product details
Magnesium Oxide Rock Wool Cleanroom Panels are engineered to meet the rigorous demands of cleanroom applications, where the highest standards of air purity, temperature stability, and fire safety are essential. These panels are constructed from high-quality magnesium oxide (MgO) boards and rock wool, making them a top choice for cleanroom facilities, laboratories, data centers, and other environments that require precision and control.
Key Features of Magnesium Oxide Rock Wool Cleanroom Panels:
Superior Fire Resistance
Magnesium oxide boards are well known for their excellent fire-resistant properties. These panels provide a high level of fire protection and can withstand high temperatures without deteriorating. The fire resistance of these panels ensures the safety of personnel and equipment in case of a fire, providing peace of mind in sensitive and high-risk environments. The panels are compliant with the highest fire safety standards, making them a preferred choice for projects where fire protection is a priority.
High Strength and Durability
The combination of magnesium oxide and rock wool provides exceptional mechanical strength, allowing these panels to withstand substantial stress without cracking or breaking. These panels are not only highly resilient but also long-lasting, maintaining their integrity over time even in the most demanding environments. Whether used for walls, ceilings, or floors, these panels are designed to perform reliably over the long term.
No Dusting or Crumbling
One of the key advantages of using Magnesium Oxide Rock Wool Cleanroom Panels is their resistance to dusting and crumbling. Traditional insulation materials may degrade over time and release harmful particles into the air, which is a significant concern in cleanroom settings. These panels, however, are designed to maintain their structure and integrity without shedding dust or particles, ensuring that the environment remains clean and safe for sensitive operations.
Moisture Resistance and Humidity Control
The rock wool core of these panels is made from hydrophobic (water-repellent) material, providing exceptional resistance to moisture and ensuring long-term durability. This feature is especially important in environments with high humidity, such as pharmaceutical or food manufacturing cleanrooms, where moisture could compromise the effectiveness of processes or equipment.
Thermal Insulation
Magnesium Oxide Rock Wool Cleanroom Panels are designed to offer excellent thermal insulation properties, helping to maintain a stable temperature within controlled environments. The panels help to minimize heat loss and prevent heat gain, contributing to energy efficiency and the creation of a consistent, controlled environment for sensitive processes. This insulation also aids in reducing energy costs over time.
Acid-Resistant and Non-Crumbling
These panels have an acid resistance coefficient greater than or equal to 1.6, ensuring that they do not degrade or break down when exposed to acidic environments. This is especially important in cleanrooms where chemical processes are involved, as the materials need to withstand exposure to various substances without compromising their integrity.
No Deformation or Deterioration Over Time
Unlike some insulation materials that may warp, shrink, or degrade over time, Magnesium Oxide Rock Wool Cleanroom Panels are designed to maintain their shape and structure throughout their lifecycle. This makes them ideal for use in environments that require constant monitoring and adjustment, as they will not lose their insulating or fire-resistant properties over time.
Environmental Friendliness
These panels are made from eco-friendly materials, offering a sustainable solution for construction and insulation. Magnesium oxide is a natural, non-toxic material, and the rock wool used in these panels is sourced from natural minerals. The panels contribute to a reduced environmental footprint, making them an excellent choice for green building projects.
Technical Specifications
| Project | Single-layer magnesium oxide board + rock wool | Double-layer magnesium oxide board + rock wool |
| Panel Thickness | 50mm 75mm 100mm 150mm 200mm | 50mm 75mm 100mm 150mm 200mm |
| Recommended Wall Panel Length | ≤6000mm | ≤6000mm |
| Recommended Ceiling Panel Length | ≤3000mm | ≤3000mm |
| Wall Panel Width | 980 1180 and non-standard specifications | 980 1180 and non-standard specifications |
| Thermal Conductivity | 0.216 W/m`K | 0.285W/m `K |
| Integrated Features | Can accommodate embedded conduits and prefabricated hollow studs | Conduit pipes and prefabricated hollow studs can be pre-installed. |
| Fire Resistance Rating | 1 h | 2h |
| Suitable Panel Type | Center-grooved, concave-convex style, tongue-and-groove style | Center-grooved, raised-grooved, tongue-and-groove type |
| Bending Load Capacity | 1.34KN/m² | 2.82KN/m² |

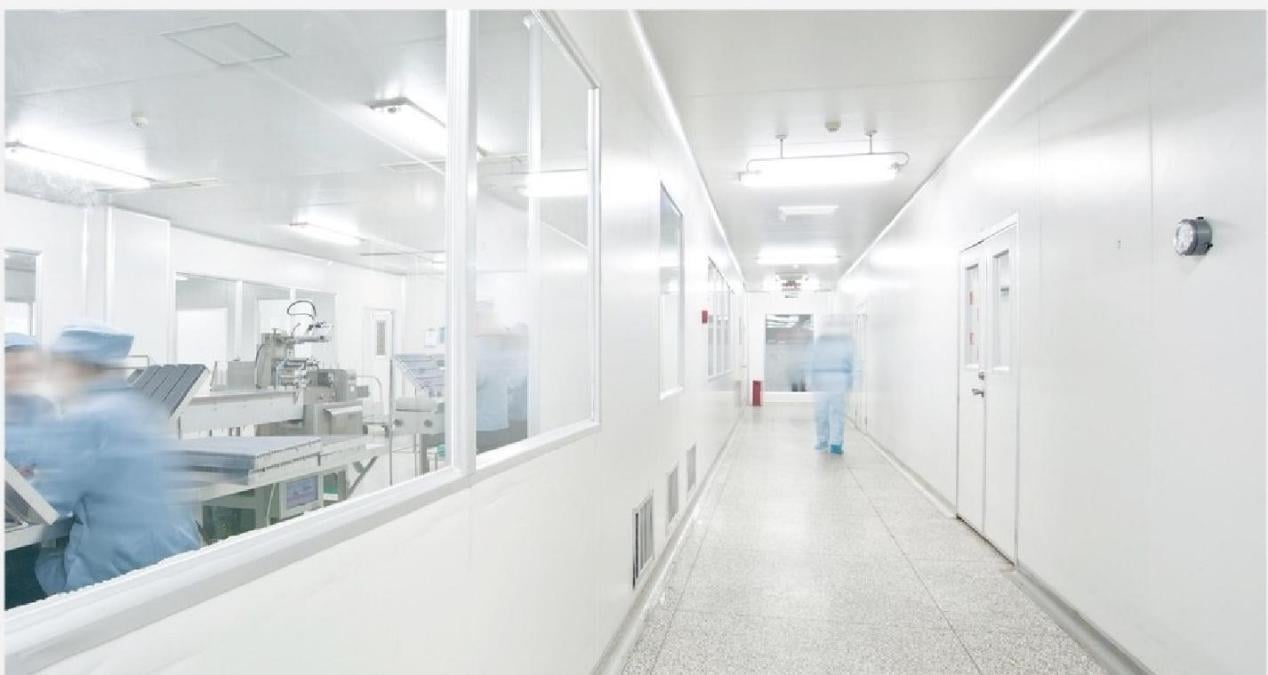

Applications
• Magnesium Oxide Rock Wool Cleanroom Panels are widely used in various industries, including:
• Pharmaceutical Industry: These panels ensure a clean and sterile environment, essential for drug manufacturing and research facilities.
• Electronics Manufacturing: Providing excellent insulation and moisture resistance, these panels protect sensitive electronic components during production.
• Food Processing and Packaging: The panels help maintain the necessary temperature and humidity levels required for food safety and hygiene.
• Medical Laboratories: Used in labs where contamination control and fire safety are critical, these panels offer a durable and reliable solution.
• Data Centers: Ensuring temperature stability and preventing dust accumulation, these panels help create an optimal environment for servers and electronic equipment.
Why Choose Us
Superior Fire Protection: High fire resistance to safeguard both the facility and personnel.
Durability: Exceptional strength and longevity, making them a cost-effective solution in the long run.
Clean Environment: No dust or particle shedding, making them ideal for cleanrooms and sterile environments.
Thermal Insulation: Efficient temperature control to create stable conditions for sensitive processes.
Moisture Resistance: Protection against humidity, ensuring a consistent environment.
Eco-Friendly: Made from natural materials, contributing to a sustainable building solution.
Magnesium Oxide Rock Wool Cleanroom Panels are an essential material for any high-performance cleanroom or controlled environment. With a combination of superior fire resistance, high strength, moisture resistance, and thermal insulation, these panels ensure the creation of optimal conditions for sensitive industrial and scientific applications. Whether you’re building a new cleanroom or upgrading an existing facility, these panels offer an excellent balance of durability, safety, and environmental benefits, making them a smart investment for any project.
