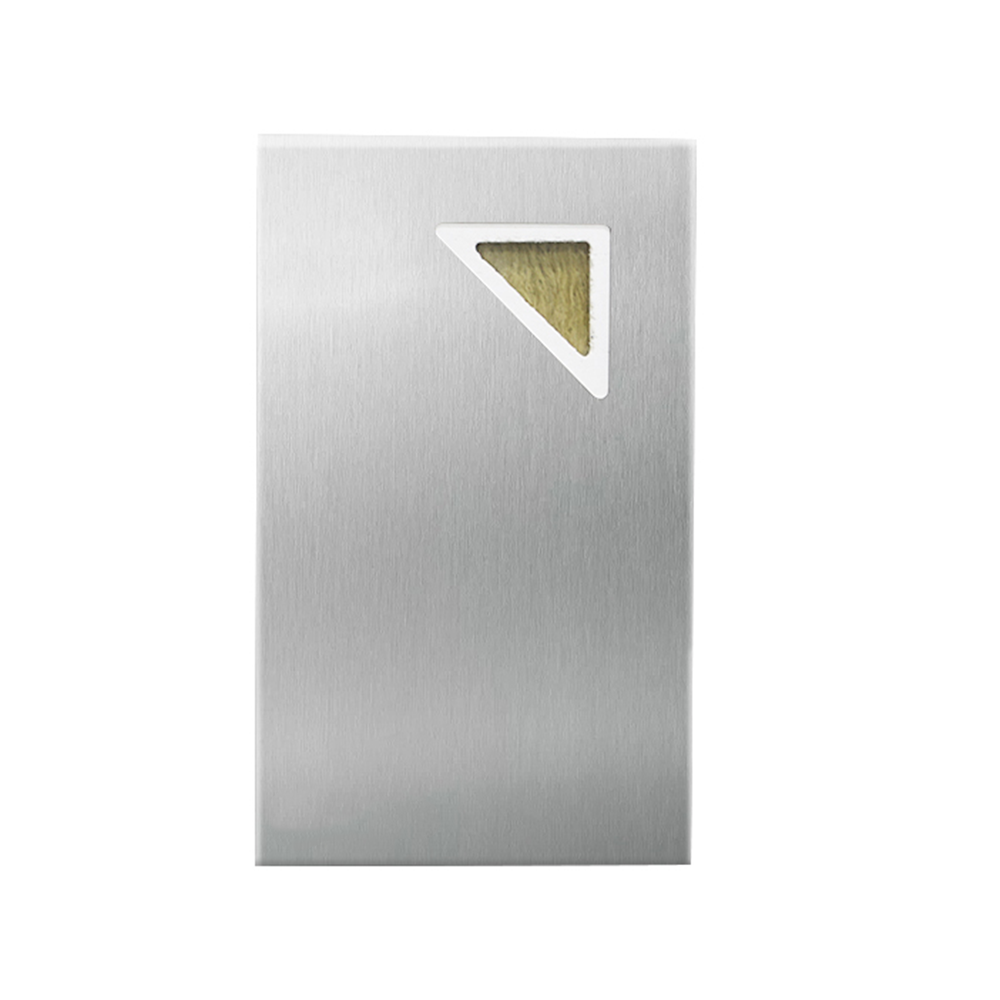

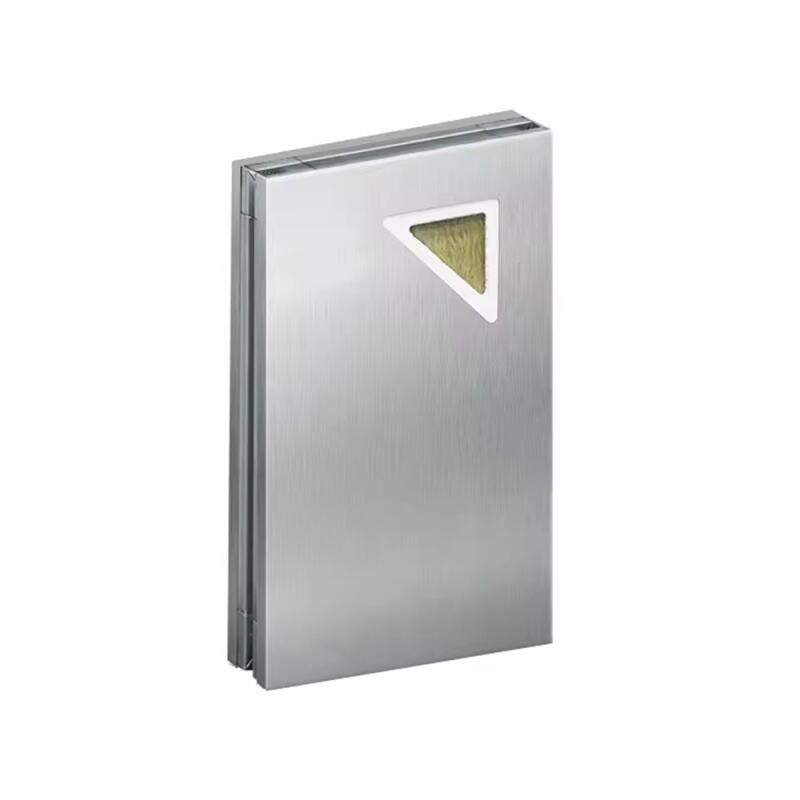

304 Stainless Steel Manual Clean Room Panel
This 304 Stainless Steel Manual Clean Room Panel features an ingenious male-female interlocking design, which saves on aluminum and thus reduces installation costs. Its unique internal structure facilitates wiring, and all four sides have fully sealed steel edges, providing exceptional strength and a seamless, aesthetically pleasing finish for high-standard cleanrooms.
• Utilizes a tongue-and-groove interlocking system, saving on aluminum materials and effectively reducing installation costs.
• Each groove can be used as a conduit for wiring, facilitating construction.
• The edges are pressed at a 90-degree angle, resulting in a more aesthetically pleasing joint.
- Overview
- Technical Specifications
- Applications
- Recommended Products
Product details

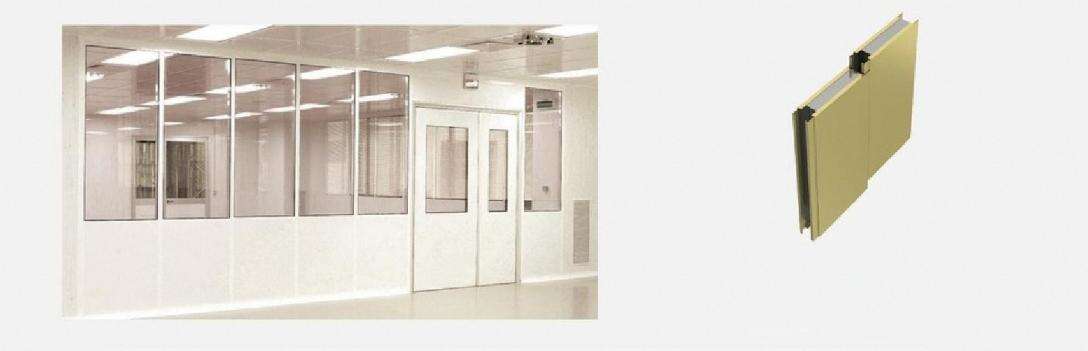

Looking for a cleanroom wall system that reduces material costs while increasing installation speed? Our Stainless Steel Clean Room Panel is the answer. Engineered with a unique male-female interlocking system, this panel removes the need for traditional aluminum connecting profiles. Its structural integrity is boosted by 4-side steel sealing, making it the ideal choice for pharmaceutical, electronics, and food processing facilities requiring high durability and hygiene. GloStar is one of China's cleanroom panel manufacturers, and its cleanroom panels are made of 304 stainless steel. They can withstand high temperatures up to 800°C, possess excellent processing properties and high toughness, and can withstand frequent disinfection, cleaning, and wiping. They are widely used in the food and medical industries.
Key Features & Benefits
✅ Cost-Saving Interlocking System
No Aluminum Profiles Needed: The 304 Stainless Steel Manual Clean Room Panels connect directly via a male-female (plug-in) structure. This design significantly reduces the budget by eliminating the need for expensive intermediate aluminum profiles.
Fast Installation: The "Insert and Click" installation method is intuitive and rapid, reducing labor costs and project timelines.
✅ Innovative Built-in Wire Conduit
Hidden Utility Channels: A standout feature of our 304 stainless steel hand-made cleanroom panel is the hollow space within the interlocking joint. This space serves as a natural wire conduit, allowing electricians to run cables directly through the panel joints without drilling extra holes or installing external trunking.
Convenient Construction: This design greatly simplifies the integration of switches and sockets, maintaining the cleanroom's air tightness.
✅ 4-Side Steel Sealing & High Strength
Full Sealing: Unlike open-edge panels, ours feature four-side steel sealing. This box-like structure prevents core material leakage and blocks moisture infiltration.
Structural Integrity: The sealed edge design acts as a reinforcement frame, giving the panel superior bending resistance and overall load-bearing capacity.
✅ Aesthetic 90-Degree Edge Design
Seamless Finish: The starting edges are pressed at a precise 90-degree angle. When cleanroom panels are joined, the seam is tight, flush, and aesthetically pleasing.
Easy to Clean: The minimized gap reduces dust accumulation, making the walls easier to clean and fully compliant with GMP/ISO standards.
Technical Specifications
| Product Model | 950/1150mm | Non-standard customization |
| Effective Coverage Width | 1150mm/950mm | Actual customized width |
| Steel Plate Thickness | 0.4-0.8mm | Tongue-and-groove type handmade cleanroom panel |
| Core Material Thickness | 50mm,75mm,100mm,150mm,200mm | |
| Keel Thickness | 0.7-1.0mm | |
| Length | 6000mm (Recommended maximum length for wall panels) | |
| Fire Resistance Rating | 0.5h~3h | |
 |
 |

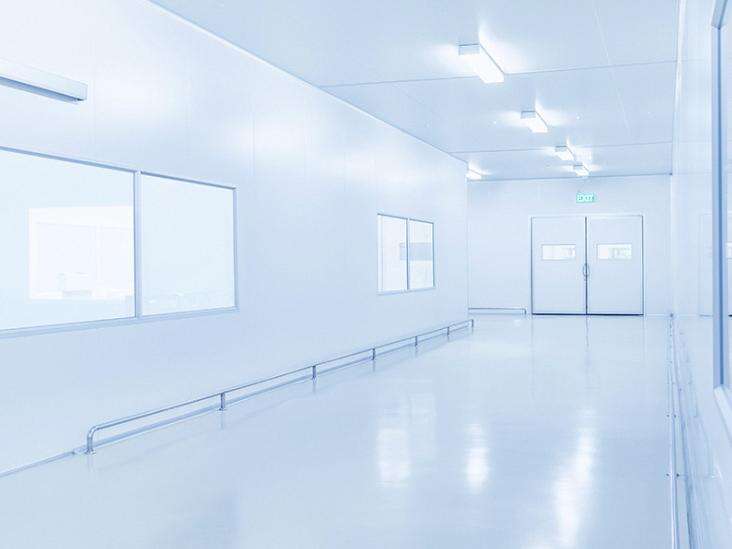

Applications
Our Interlocking Sandwich Panels are widely used in industries with strict hygiene and structural requirements:
Pharmaceutical Factories: GMP-compliant cleanrooms.
Electronics Manufacturing: Dust-free workshops for semiconductors.
Hospitals: Operating theaters and ICUs.
Food Processing: Washable and durable partition walls.
