Walkable Magnesium Oxide Rockwool Cleanroom Ceiling Panel

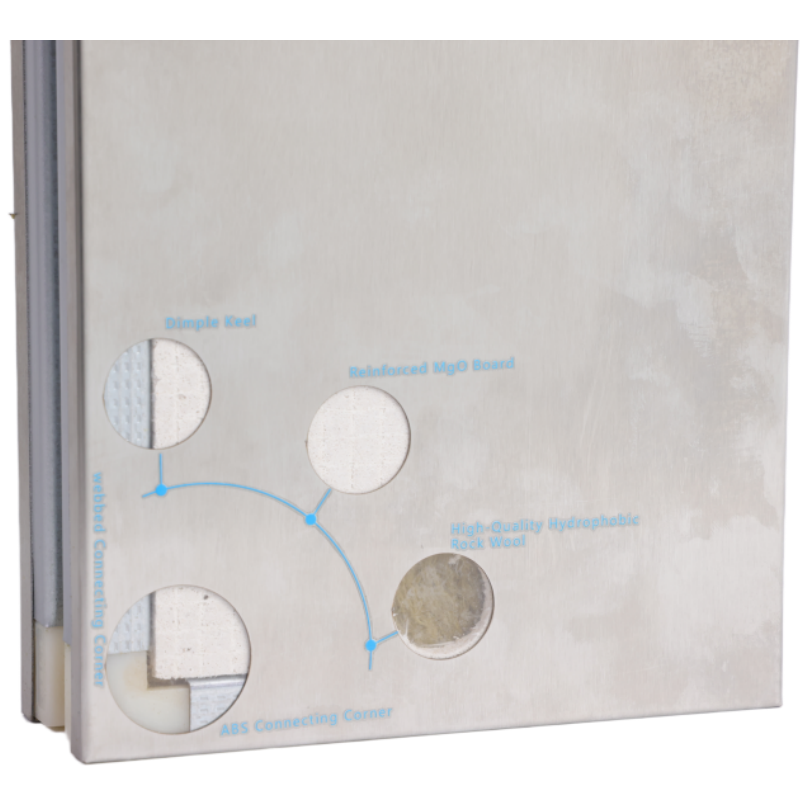

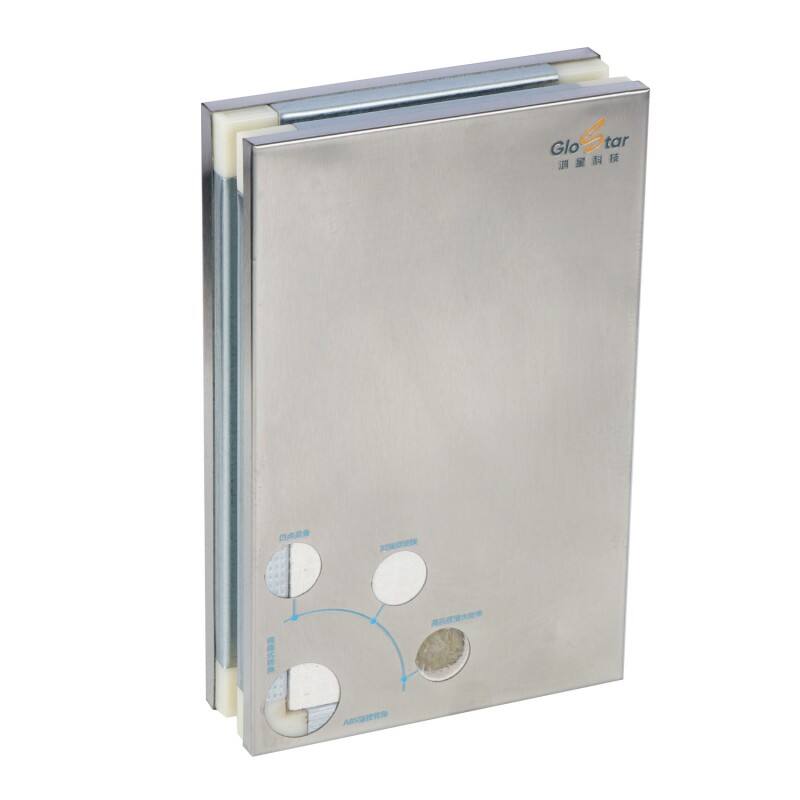

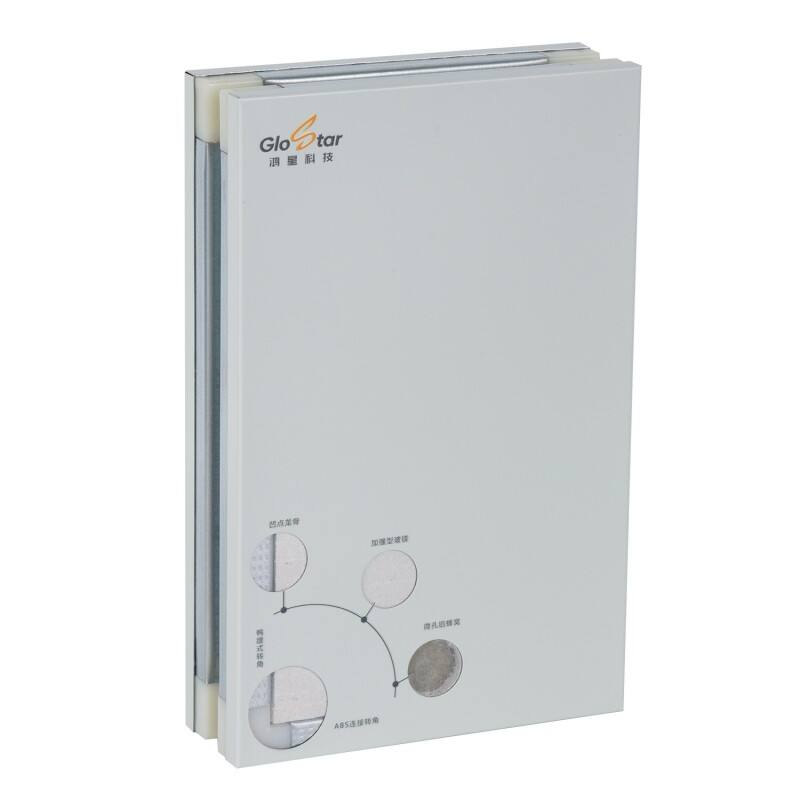

The Walkable Magnesium Oxide Rockwool Cleanroom Ceiling Panel manufactured by Glostar factory is a structural, fire-resistant sandwich panel designed for controlled environments such as pharmaceutical, food processing, electronics, and semiconductor facilities. Featuring a high-density rock wool core sandwiched between two layers of magnesium oxide board, the clean room panel offers excellent sound and thermal insulation while possessing sufficient structural strength to support personnel performing maintenance work above the cleanroom area.
- Overview
- Recommended Products
Product details
- ✦Complete ceiling system — panels, T-grid, perimeter trim, coved corner accessories, and sealing compounds supplied from one source.
- ✦Third-party certified — fire classification test report, load test report, and MgO board material certificate available for project documentation and facility qualification.
- ✦Custom sizes and finishes — non-standard panel dimensions, RAL colour matching, anti-static coating, and stainless steel inner face available for project-specific requirements.
- ✦Export-ready — panels packed for sea or air freight with full export documentation. Serving Middle East, Southeast Asia, South Asia, and North Africa markets directly from factory.
The Glostar Walkable Magnesium Oxide Rockwool Cleanroom Ceiling Panel is engineered for cleanroom and controlled-environment ceilings that need to bear maintenance foot traffic — HVAC servicing, filter replacement, lighting access — without requiring separate dedicated walkways above the ceiling plane. The panel combines a high-density MgO board rockwool core with a cold-formed steel frame and pre-painted steel face sheets, producing a rigid composite panel that distributes concentrated point loads safely across the ceiling grid.
Unlike standard gypsum or calcium silicate ceiling panels, the MgO core is inherently moisture-resistant, dimensionally stable in humid environments, and achieves Class A (non-combustible) fire classification — making this panel compliant with the fire and hygiene requirements of pharmaceutical GMP facilities, electronics cleanrooms, food processing environments, and hospital operating theatres across the Middle East, Southeast Asia, and South Asia.
The steel frame and MgO rockwool core composite structure provides a distributed load capacity of ≥ 200 kg/m², sufficient for maintenance personnel and light equipment access without deformation or panel failure.
Magnesium oxide is an inorganic mineral compound that does not burn, melt, or contribute to fire spread. The panel achieves Class A (non-combustible) fire classification, meeting Civil Defence requirements in the UAE, Saudi Arabia, and equivalent standards across most target markets. No toxic gas emission under fire conditions.
MgO board has inherently low moisture absorption — it does not swell, warp, or lose structural integrity in humid cleanroom environments. Unlike gypsum board, which degrades progressively in high-humidity conditions, MgO panels maintain dimensional stability at relative humidity up to 95%, making them suitable for tropical and coastal climates without special treatment.
The inner face (cleanroom side) is a smooth full-flat pre-painted steel sheet — no recesses, no exposed fasteners, no particle-trapping profiles. The surface is compatible with standard cleanroom cleaning agents and disinfectants. Anti-static coating available for semiconductor and electronics cleanrooms requiring controlled surface resistivity.
Panels are designed to drop into a standard exposed or concealed T-bar ceiling grid — compatible with 1200 × 600 mm and 600 × 600 mm module layouts. The panel weight and rigidity ensures secure seating in the grid without additional clip fixings under normal conditions. Positive-locking clips available for seismic zones or high air-pressure differential environments.
The MgO core provides moderate acoustic insulation, reducing noise transmission between cleanroom zones and plenum space. Optional rock wool infill layer available for enhanced acoustic performance in noise-sensitive applications such as hospital operating suites and precision metrology rooms.
| Panel Type | Walkable Magnesium Oxide Rockwool Cleanroom Ceiling Panel — steel frame composite |
| Core Material | High-density Magnesium Oxide (MgO) board |
| Standard Panel Size | 1 200 × 600 mm / 600 × 600 mm (custom sizes on request) |
| Available Thickness | 50 mm / 75 mm (other thicknesses on request) |
| Distributed Load Capacity | ≥ 200 kg/m² |
| Fire Classification | Class A — Non-combustible |
| Face Sheet (cleanroom side) | 0.5 mm pre-painted steel — full-flat profile, smooth finish |
| Face Sheet (plenum side) | 0.4 mm pre-painted steel |
| Surface Finish Options | Standard white (RAL 9003) · custom RAL · anti-static coating · stainless steel face (GMP option) |
| Grid Compatibility | Standard T-bar exposed grid / concealed grid system |
| Moisture Resistance | No swelling, no deformation up to RH 95% |
| Applicable Standard | EN 13964 (suspended ceilings) · GB 25970 (MgO board) · ISO 9001:2015 factory QMS |
Looking for a Walkable Magnesium Oxide Rockwool Cleanroom Ceiling Panel?
Share your cleanroom classification, ceiling area, grid module, and project location — our technical team will respond within 24 hours.
