Mechanism Clean Room Panel

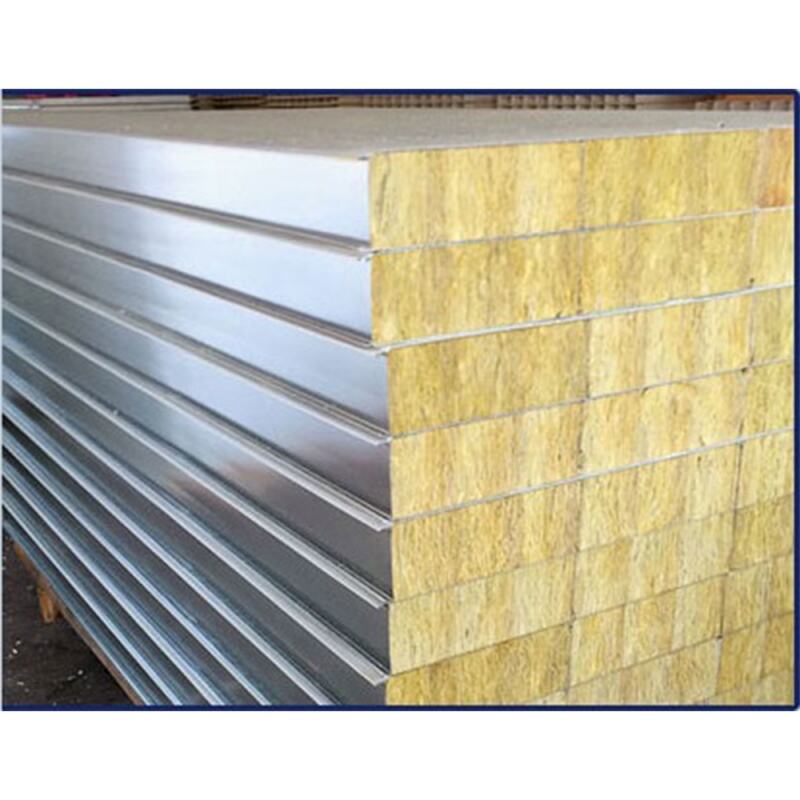

The Mechanism Clean Room Panels utilize an advanced, ultra-long continuous composite process, resulting in excellent surface flatness and a more affordable price. The product features a unique steel plate press-fit edge sealing and tongue-and-groove interlocking design, allowing for quick installation without the need for complex accessories, significantly reducing construction time. Optional internal longitudinal reinforcing ribs provide the panels with superior overall strength and bending resistance, making them a cost-effective choice for large cleanroom facilities and partition walls/ceilings.
• Features an extra-long composite process, resulting in excellent flatness and low cost.
• Both sides and ends can be sealed with steel plates; the steel plates are pressed and sealed at the edges, allowing for plug-in installation and fast installation speed.
• Longitudinal reinforcing ribs can be added to the middle of the panel to increase overall strength.
- Overview
- Technical Specifications
- Applications
- FAQ
- Recommended Products
Product details
Product Core Advantages
✅ Advantage 1: Ultra-long Composite Process, Mirror-level Flatness
Utilizing an advanced fully automatic continuous production line, the Mechanism Clean Room Panels are formed in a single process using an ultra-long composite process.
Extreme flatness: Overcoming the defects of traditional handmade panels prone to bulging and waviness, the panel surface is as flat as a mirror, providing excellent visual effects.
Superior cost-effectiveness: Mechanized and large-scale production significantly reduces processing costs. For the same quality, it saves you a significant amount of project budget, making it the king of cost-effectiveness for large-scale cleanroom projects.
✅ Advantage 2: Steel Plate Press-fit Edge Sealing, "One Step Ahead" in Plug-in Installation
Say goodbye to cumbersome aluminum profile connections; we use a tongue-and-groove plug-in design.
Self-contained edge sealing: During production, both sides and ends can be directly sealed by steel plate press-fitting, forming a closed structure. This not only improves airtightness but also effectively prevents the core material from getting damp.
Extremely fast construction: Plug-in installation is as simple and quick as building with building blocks. No need for intermediate aluminum connectors, which not only reduces thermal bridges but also increases installation efficiency by more than 30%, significantly shortening the construction period.
✅ Advantage 3: Unique Reinforcement Rib Design, Doubled Strength
Worried about long panels deforming? We have the solution!
Longitudinal reinforcement: Longitudinal reinforcement ribs can be added inside the panel as needed, creating a supporting "skeleton."
Stronger load-bearing capacity: Significantly increases the overall strength and bending resistance of the panel. Whether used for tall partition walls or as walkable ceiling material, it remains stable and secure.
Node Legend

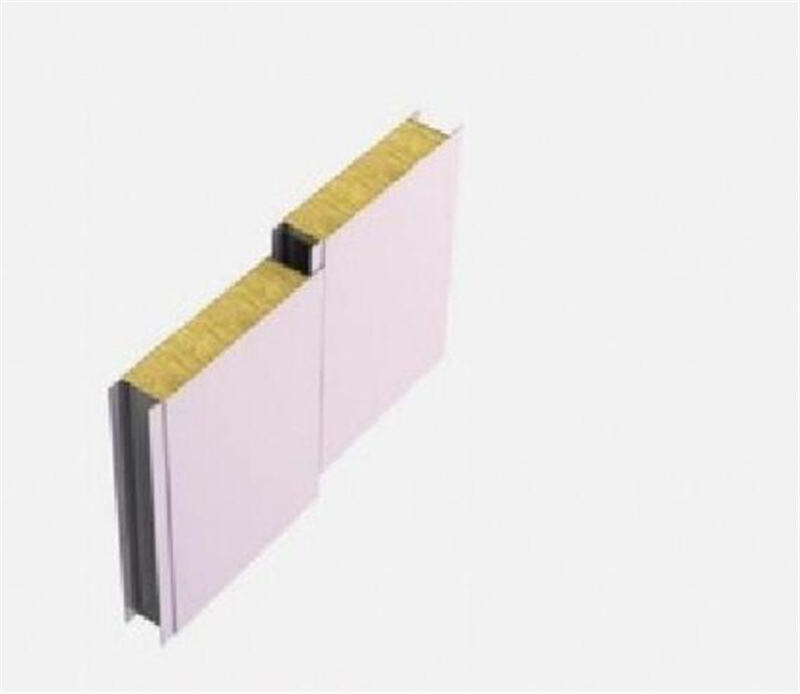

Wall panel splicing
Technical Specifications
| Product Model | 1150 mm | 950mm |
| Effective Coverage Width | 1150mm | 950mm |
| Steel Plate Thickness | 0.4-0.8mm | |
| Core Material Thickness | 50mm 75mm 100mm 150mm 200mm | |
| Keel Thickness | 0.6-1.0mm | |
| Length | 6000mm (recommended wall panel length) is not recommended for ceiling panels. | |
| Fire Resistance Rating | 0.5h~3h | |

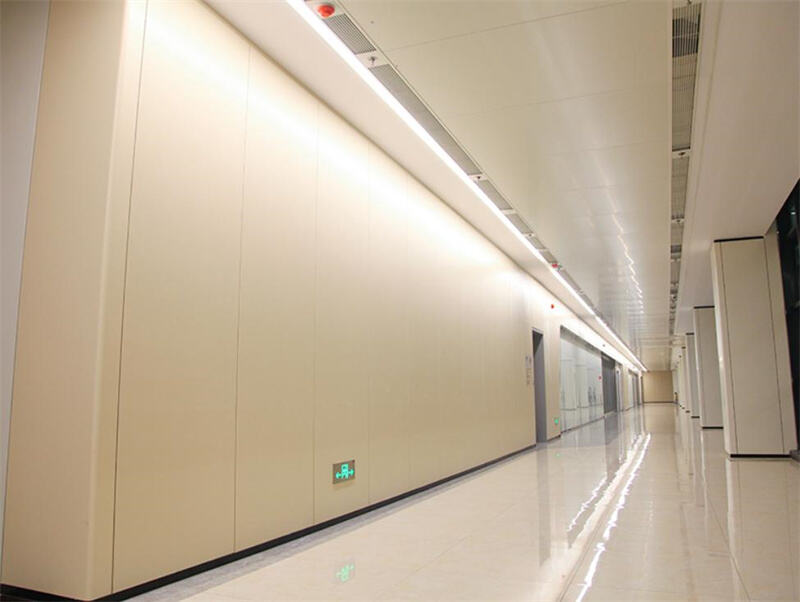

Applications
This mechanical clean room panel, due to its high strength and fast installation characteristics, is particularly suitable for the following scenarios:
• Large cleanroom facilities: Ultra-large workshops in the electronics, semiconductor, and photovoltaic industries.
• Walkable ceilings: The reinforced design makes it an ideal ceiling material, facilitating future inspection and maintenance.
• Rapid partition construction: Projects requiring quick completion, such as warehousing and logistics facilities, and temporary epidemic prevention facilities.
• Food and pharmaceutical workshops: Environments requiring frequent cleaning and wiping, and demanding high levels of flatness.
FAQ
Q: What are the biggest advantages of mechanism cleanroom panels compared to manually manufactured panels?
A: The biggest advantages of mechanically manufactured cleanroom panels are high production capacity, low cost, and fast installation. Mechanical one-time molding results in better flatness, and the tongue-and-groove connection method eliminates the need for intermediate aluminum profiles, making the overall cost more affordable.
Q: Are reinforcing ribs necessary?
A: They are not mandatory, but it is strongly recommended to add reinforcing ribs when constructing ceilings or walls with a height exceeding 3 meters. This significantly extends the service life of the panels and prevents deformation.
Q: What are the benefits of steel plate sealing on both sides?
A: Traditional mechanically cleanroom panels may have open sides, which can lead to powder shedding or moisture ingress. Our steel plate sealing technology creates a closed box structure, resulting in higher strength and preventing core material leakage, thus better meeting GMP cleanroom requirements.
