50mm 75mm 100mm Thickness Manual Cleanroom Panel
Upgrade your controlled environment with our premium Manual Cleanroom Panels, designed for projects requiring the highest standards of hygiene, strength, and aesthetics. Unlike standard machine-made panels, our handmade series features a four-sided bow-shaped galvanized keel frame, providing exceptional structural integrity and load-bearing capacity.
Utilizing advanced ECCP hot-press technology, the core material is bonded seamlessly to the steel face, ensuring a perfectly flat surface that resists delamination. The system employs a modular aluminum connection, making assembly fast, airtight, and efficient. Available in 50mm, 75mm, and 100mm thicknesses, this is the ultimate wall solution for pharmaceutical, electronic, and food safety cleanrooms.
- Overview
- Technical Specifications
- Why Choose Us
- Applications
- FAQ
- Recommended Products
Product details
In the construction of modern cleanrooms, the quality of the wall enclosure system dictates the cleanliness, safety, and longevity of the facility. Our Manual Cleanroom Sandwich Panel series represents the top tier of modular cleanroom wall systems. Available in standard thicknesses of 50mm, 75mm, and 100mm, these panels are engineered to meet strict GMP, FDA, and ISO standards.
Distinguished by superior craftsmanship, our handmade panels overcome the limitations of continuous machine production. By integrating a full steel frame and utilizing advanced pressing techniques, we deliver a wall panel that offers unmatched strength, superior flatness, and a flexible, modular installation process.
EXCELLENT PERFORMANCE

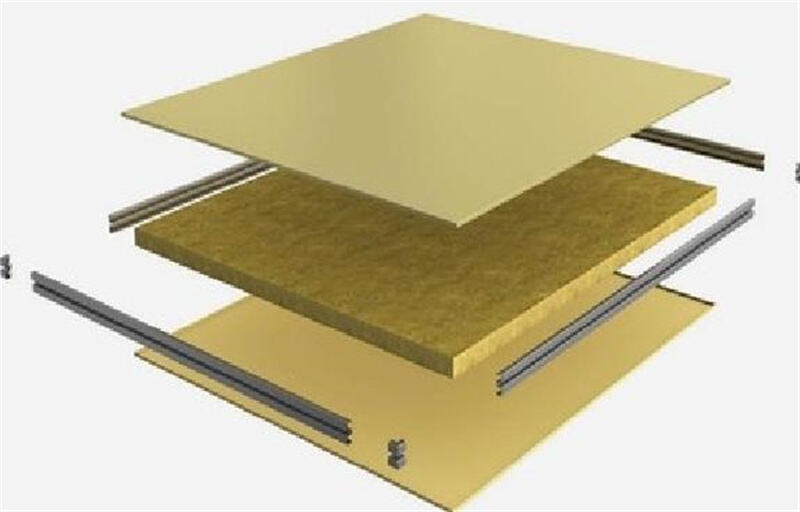

1.The frame uses arch-shaped galvanized steel keels on all four sides, resulting in greater overall panel strength.
2.Using H-shaped aluminum connectors, modular assembly allows for faster construction.
3. The use of a continuous hot-pressing process ensures higher adhesion between the core material and the panel, resulting in better flatness.
Technical Specifications
| Product Model | 1180mm/980mm | Non-standard customization |
| Effective Coverage Width | 1180, 980, and non-standard widths | Actual customized width |
| Steel Plate Thickness | 0.4-0.8mm | |
| Core Material Thickness | 50mm,75mm,100mm | |
| Frame Thickness | 0.7-1.0mm | |
| Length | 6000mm (recommended maximum length for wall panels) 3000mm (recommended length for ceiling panels) | |
Why Choose Us
While Mechanism cleanrooom panels are suitable for budget-conscious projects, Manual cleanroom Panels are the choice for critical environments. Here is why:
Customization: Handmade panels can be customized to exact dimensions, reducing on-site cutting and waste.
Embedded Conduit: The manual production process allows for the pre-installation of wire conduits and reinforcement blocks within the panel, keeping the cleanroom surface flush and uncluttered.
Higher Fire Ratings: The thick, galvanized keel frame improves fire containment capabilities compared to the weaker joint systems of machine-made panels.
Node Legend
-

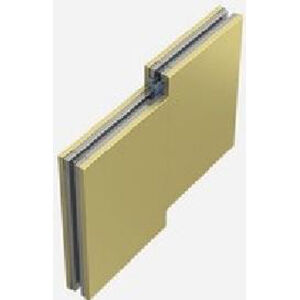

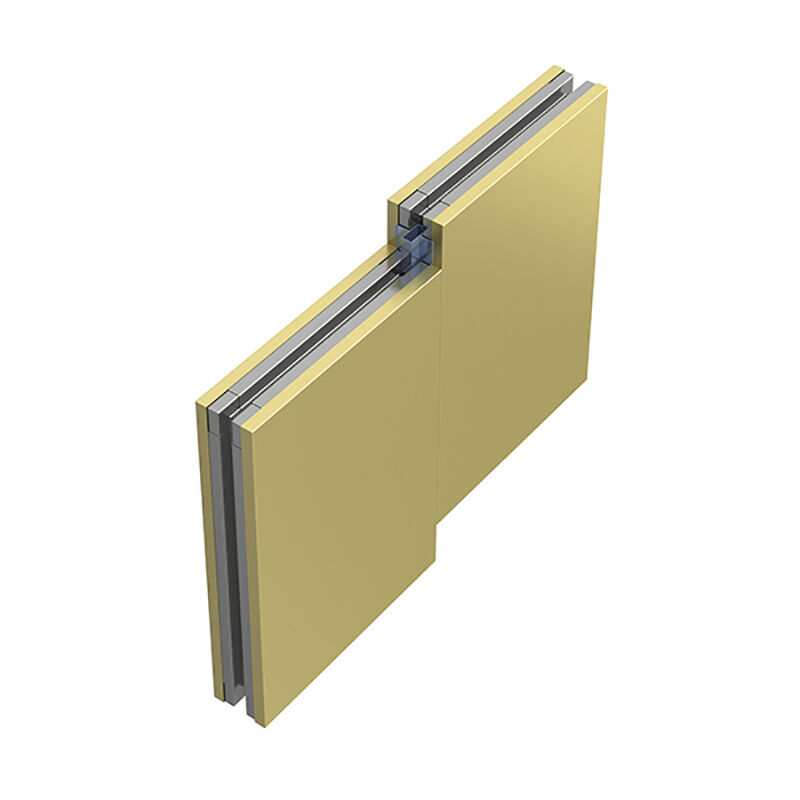

Two-panel assembly
-

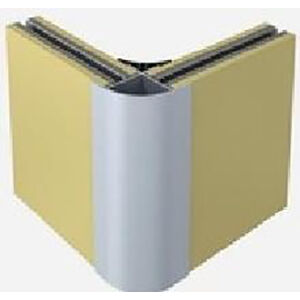

Corner connection
-

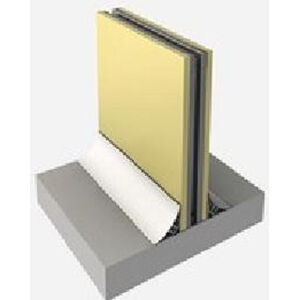

Ground rail connection
-

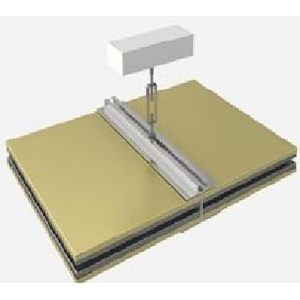

Suspended ceiling with central support beams
Applications
Our 50mm, 75mm, and 100mm Handmade Cleanroom Panels are widely used in industries requiring strict environmental control:
Pharmaceutical Industry: GMP-compliant production workshops, filling rooms, and packing areas.
Electronics & Semiconductors: Anti-static and dust-free workshops for microchip manufacturing.
Healthcare: Operating theaters (OT), ICU wards, and isolation rooms.
Food Processing: Aseptic packaging rooms and beverage bottling lines.
Biotechnology: Laboratories and research centers requiring biosafety containment.
Installation & Maintenance Guide
Installation Brief:
The installation utilizes the "Middle" aluminum profile. First, the floor track is laid. The panels are then erected, and the H-shaped aluminum is inserted between two panels to lock them together. The galvanized keel edge ensures the panels align perfectly vertical. Finally, joints are sealed with cleanroom-specific silicone sealant to ensure air-tightness.
Maintenance:
Thanks to the ECCP process and high-quality coating (PE/PVDF), these panels are resistant to corrosion. Regular cleaning with alcohol or neutral detergents is sufficient to maintain their pristine condition. The high-strength keel ensures the walls withstand impact from carts or equipment better than standard panels.
FAQ
Q: What is the main difference between the 50mm and 100mm thickness?
A: The 50mm panel is the industry standard for partition walls. The 75mm and 100mm panels provide higher insulation values (thermal and sound) and greater structural strength, making them suitable for higher partition walls or walkable ceilings.
Q: Can these panels be used for the ceiling as well?
A: Yes. The handmade panels with galvanized keels have excellent spanning capability. When used as a ceiling, they are often reinforced to allow maintenance personnel to walk on top.
Q: Is the H-shaped aluminum connection visible?
A: The profile creates a neat vertical line. It can be left as exposed aluminum or covered with a clip-on cover depending on the specific profile design chosen, but it is designed to be flush and hygienic.
Contact us today for a quote on your Cleanroom Project!
We provide complete modular solutions including doors, windows, and profiles.
