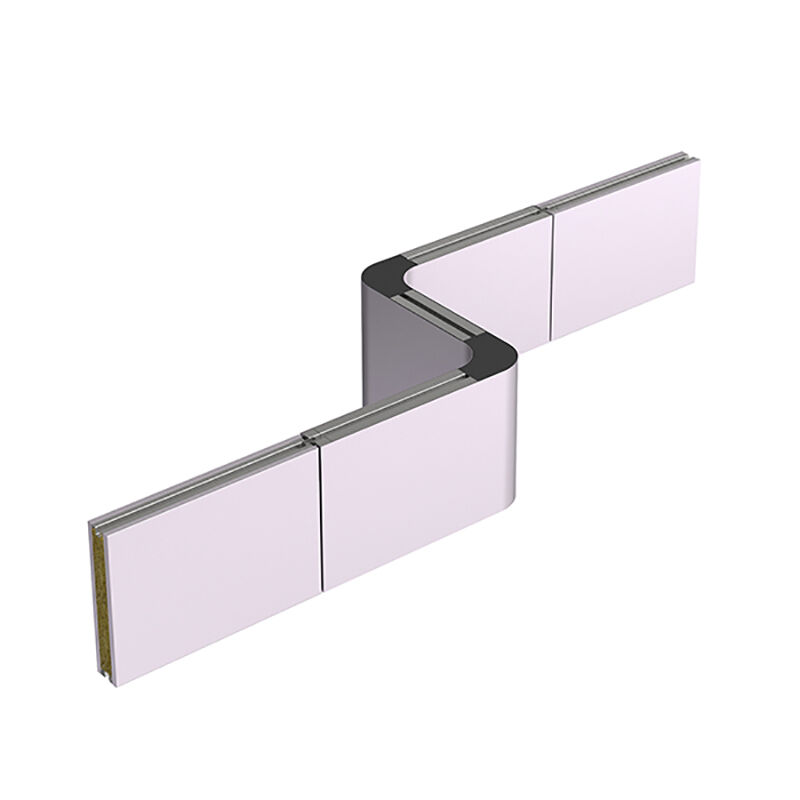

Integrated Modular Special - shaped Cleanroom Panel
Facing the complex wall structures, corners, and columns in cleanroom construction, traditional flat panel splicing is often time-consuming, labor-intensive, and aesthetically unappealing. Our Integrated Modular Special-shaped Cleanroom Panels break with tradition, employing an integrated modular design specifically created to solve the challenges of complex enclosure structures. It not only maintains the excellent fireproof and thermal insulation properties of rock wool panels but also achieves a smooth transition with "no aluminum profile connections" through structural innovation, making it ideal for modern pharmaceutical plants, electronics factories, and operating room construction.
1. The integrated module saves aluminum, improves construction efficiency, and reduces joints.
2. The surface is aesthetically pleasing.
3. It offers excellent adaptability; the modular assembly structure can adapt to complex building envelopes, and users can choose the best combination of modules based on their functional requirements.
- Overview
- Product Details
- Applications
- FAQ
- Recommended Products
Product details
Key Features & Benefits:
1. Cost Saving
Traditional construction requires a large number of aluminum profiles for connections at corners, resulting in high costs.
Material Saving: OurIntegrated Modular Special-shaped Cleanroom Panels utilize factory-prefabricated integrated bending or shaped structures, directly replacing traditional expensive aluminum profile connectors.
Cost Reduction: Significantly reduces the overall material cost of the project, ensuring your budget is spent effectively.
2. High Efficiency
Time is money. The modular assembly structure of the shaped panels makes installation as simple as building with blocks.
Fast Installation: Reduces the tedious processes of on-site cutting, grinding, and installation of aluminum profiles.
Flexible Combination: Users can choose the best combination method according to functional requirements (such as L-shaped, Z-shaped, curved, etc.), shortening the construction period by more than 30%.
3. Aesthetic & Hygienic
For cleanrooms, fewer seams mean lower risk of dust accumulation.
Smooth and Beautiful: The surface is beautiful and smooth, without protruding aluminum profile lines, resulting in a more open visual effect and a stronger sense of overall integrity.
Easy to Clean: Greatly reduces the number of seams between panels, eliminating sanitary blind spots and better complying with GMP cleanroom standards, making cleaning and maintenance easier.
4. Adaptability
No matter how complex the site environment, our shaped panels can perfectly adapt.
Flexible Customization: Whether it's column wrapping, internal and external corners, or non-standard partitions, the modular structure can perfectly adapt to complex enclosure structures.
Seamless Connection: Solves the pain points of standard panels being difficult to handle in special locations, ensuring that airtightness and thermal insulation are not affected.
Product Details

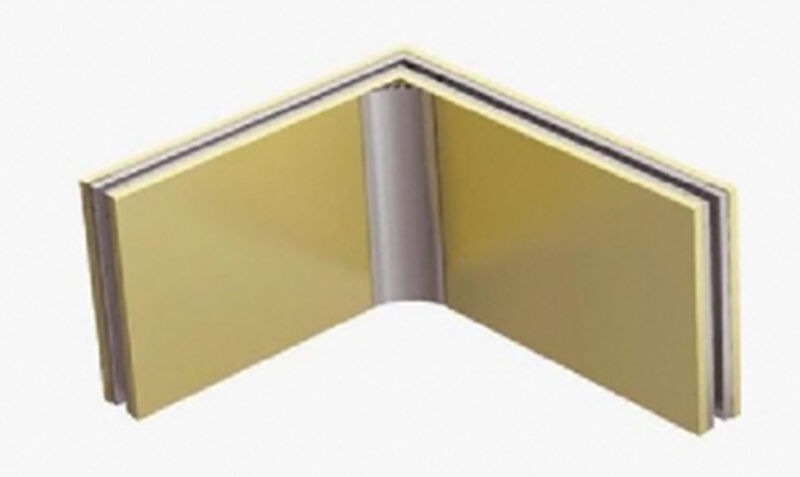

L-shaped Right-Angle Cleanroom Panel
1. Increases turning radius, improves pass-through rate, and enhances space utilization.
Integrated corner design, no cutting required, no aluminum profiles needed, ideal for column, wall corner, and window sill corner solutions.
2. Convenient construction and quick installation.
3. Reduces corner seams, enhancing overall integrity and aesthetics.

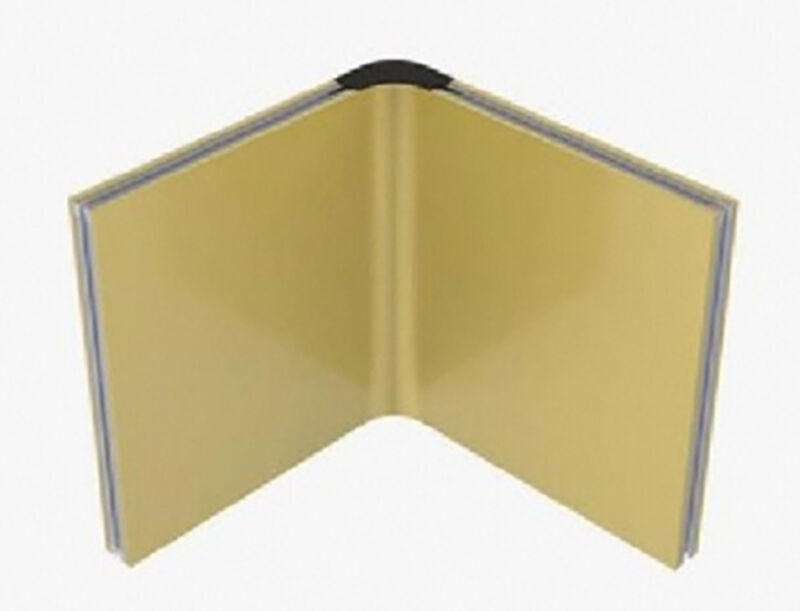

L-shaped curved corner cleanroom panel
1. No dead corners for cleaning, facilitating disinfection and cleaning.
2.Beautiful and aesthetically pleasing surface.

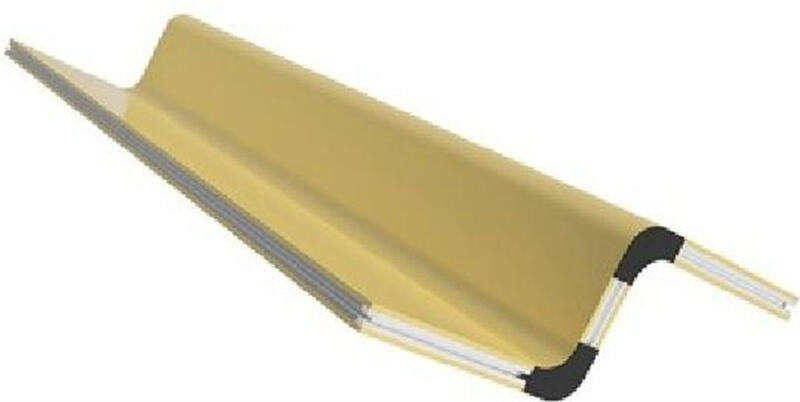

Z-shaped plate
Reduces the number of seams in panels at special corner positions, making cleaning easier.

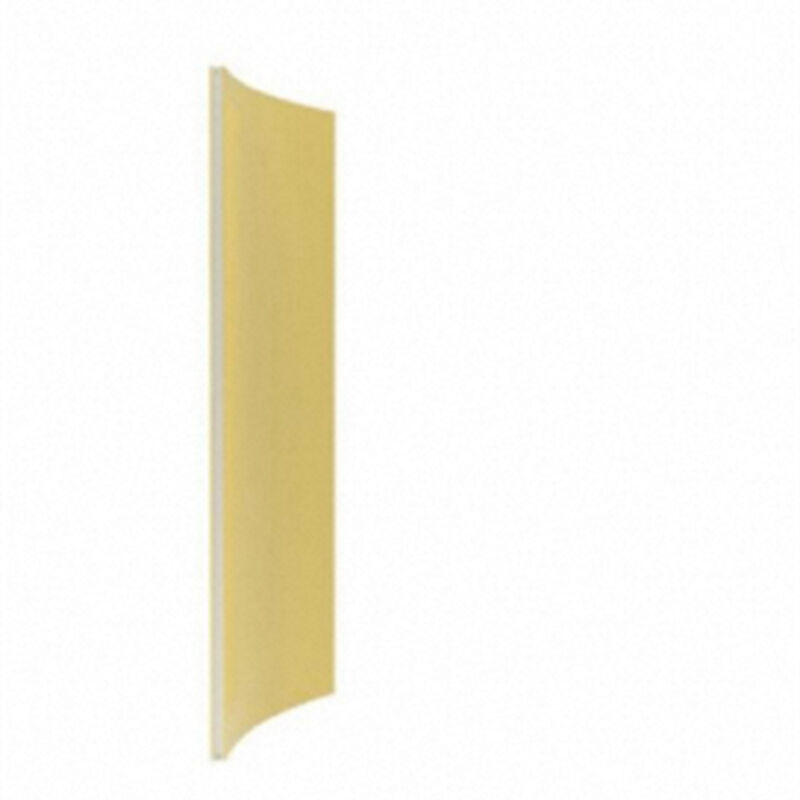

YC-shaped panel
Increases turning radius, improves pass-through rate, and enhances space utilization.

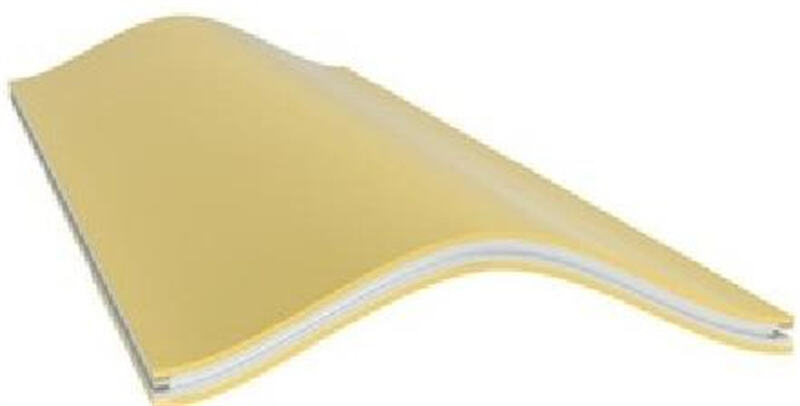

S-shaped panel
Creates unique shapes and enhances the aesthetic appeal of the space.

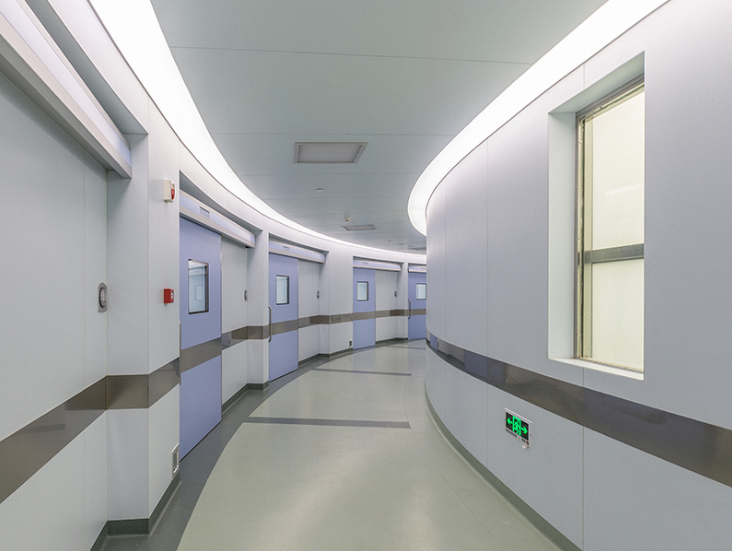

Applications
Integrated Modular Special-shaped Cleanroom Panel is an ideal choice for the construction of modern pharmaceutical factories, electronics factories, and operating rooms.
FAQ
Q: Can using custom-shaped panels really save costs?
A: Yes. Although the processing cost of a single custom-shaped panel is slightly higher than that of a standard flat panel, it eliminates the need for expensive aluminum profiles and a large amount of manual installation time. Overall, the total project cost is usually lower.
Q: What are the fire resistance and thermal insulation properties of these custom-shaped panels?
A: Our custom-shaped panels still use high-quality rock wool (acidity coefficient ≥1.8) as the core material, with a fire rating of A, and the thermal insulation performance is consistent with standard panels, with even better airtightness.
Q: Is this type of panel difficult to install?
A: No, it's not complicated. It's a modular design, and on-site assembly only requires following the drawings, greatly reducing the reliance on the technical skills of the installation workers.
