Hidden Frame/Flush Cleanroom Door
As a premier Hidden Frame/Flush Cleanroom Door supplier in China, we specialize in providing high-end door solutions for strict hygienic environments.Our Integrated Flush Cleanroom Door features a revolutionary design where the door frame and the wall panel are integrated and molded together. This ensures the door leaf remains perfectly flush with the wall on both sides, eliminating dust accumulation points and ensuring superior air tightness. It is the ideal choice for pharmaceutical, electronics, and biological laboratories.
- Overview
- Technical Specifications
- Customization Capabilities
- Why Choose Us
- Recommended Products
Product details
-
Seal
-
Hidden frame
-
Easy to clean
-
Corrosion resistant

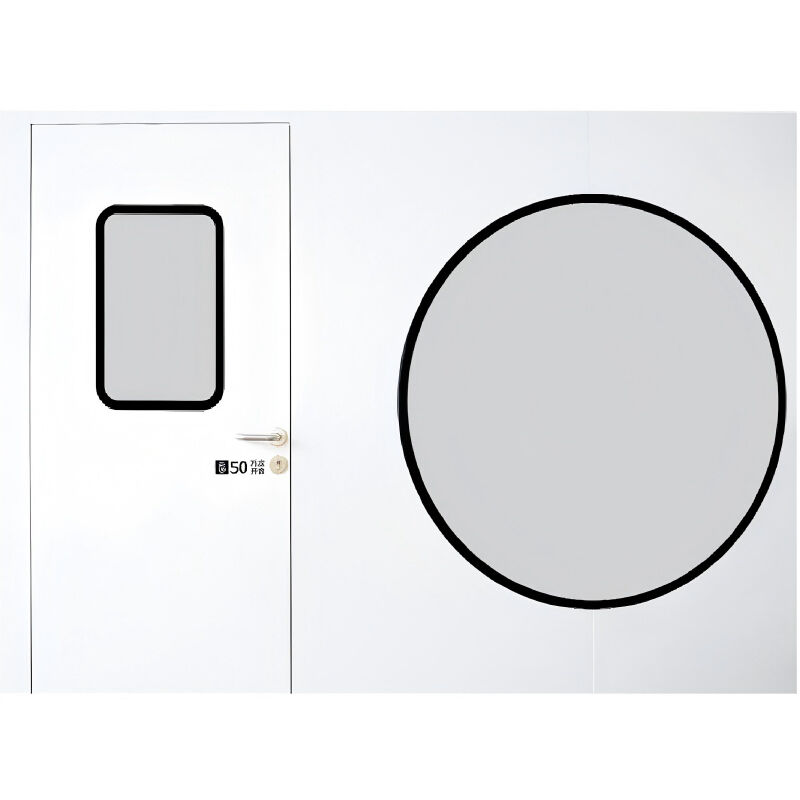

The Hidden Frame cleanroom door features a concealed-frame design, with the door frame and wall panel integrated into a single unit. It offers excellent sealing, high strength, easy opening, and flexible installation. The door leaf is flush with the wall on both sides, and the partition thickness, product dimensions, materials, and special requirements can all be customized according to specific needs.
1. Superior Sealing & Air Tightness
Equipped with high-quality sealing strips and an automatic drop seal at the bottom, our Hidden Frame cleanroom doors ensure excellent airtightness to maintain positive/negative pressure in cleanrooms.
2. Integrated Hidden Frame Design
The door frame is engineered to integrate seamlessly with the wall panel system. This "Integrated Molding" technique creates a sleek, continuous surface without protruding frames, meeting the highest GMP and ISO cleanroom standards.
2. Double-Sided Flush Surface
Achieve a completely flat surface profile. The door leaf is flush with the wall on both sides, which not only looks modern but also makes cleaning and disinfection effortless. No ledges mean no dust retention.
4. High Strength & Durability
Constructed with a reinforced internal structure and premium metal facing, the door offers high impact resistance and structural stability, ensuring a long lifespan even in frequent-use areas.
 |
 |
Technical Specifications
| Project | Specifications |
| Door leaf thickness | 50mm |
| Door leaf steel plate thickness | 0.8mm/1.0mm |
| Door frame steel plate thickness | 1.2mm/1.5mm |
| Internal filling | High-strength paper honeycomb/aluminum honeycomb |
| Optional surface materials | 304 stainless steel |
| Optional accessories | Windows, door closers, interlocks, custom locks, handles, access control systems, sensors |

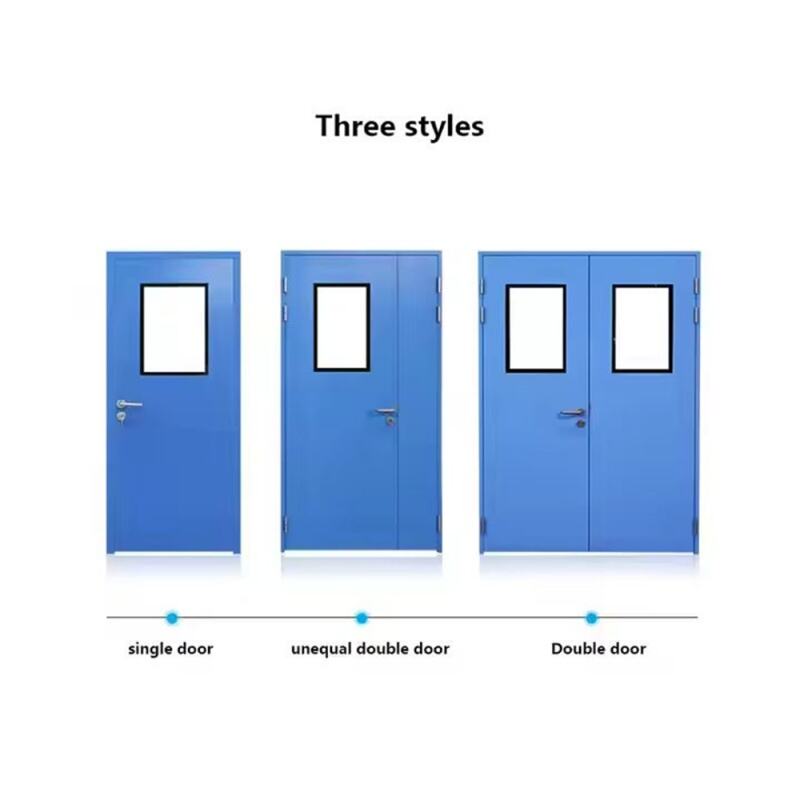

| Door leaf type | Single door, double door |
| Single door MAX | 1100*2500 |
| Double door MAX | 2200*2500 |
Customization Capabilities
As a direct factory and supplier, we understand that every cleanroom project is unique. We offer full customization options:
Wall Thickness: Adjustable to match your specific partition wall thickness.
Dimensions: Custom width and height available.
Material: Options include Galvanized Steel (GI), SUS 304 Stainless Steel, or HPL.
Core Material: Paper Honeycomb, Aluminum Honeycomb, or Rock Wool.
Special Requirements: Vision panels (windows), interlock systems, and automatic door closers can be integrated upon request.
Why Choose Us
Your Trusted Partner in China!
Direct Factory Price: Buy directly from the manufacturer and save on agent fees.
Quality Assurance: We use CNC precision manufacturing to ensure the "Integrated Frame" fits perfectly.
Global Supplier Experience: We have successfully supplied cleanroom doors to projects worldwide.
Fast Response: Professional engineering team ready to support your drawings and specs.
Get a Quote for Hidden Frame Cleanroom Doors Today!
Looking for a reliable supplier in China?
Contact our sales team for the latest catalog and factory-direct pricing.
