Aluminum Honeycomb Manual Cleanroom Panel
The Aluminum Honeycomb Manual Cleanroom Panel is designed specifically for demanding cleanroom environments, featuring an ultra-flat surface, zero fiber shedding, Class A fire resistance, and a strength-to-weight ratio unmatched by other core materials.
- Overview
- Recommended Products
Product details
Product Overview

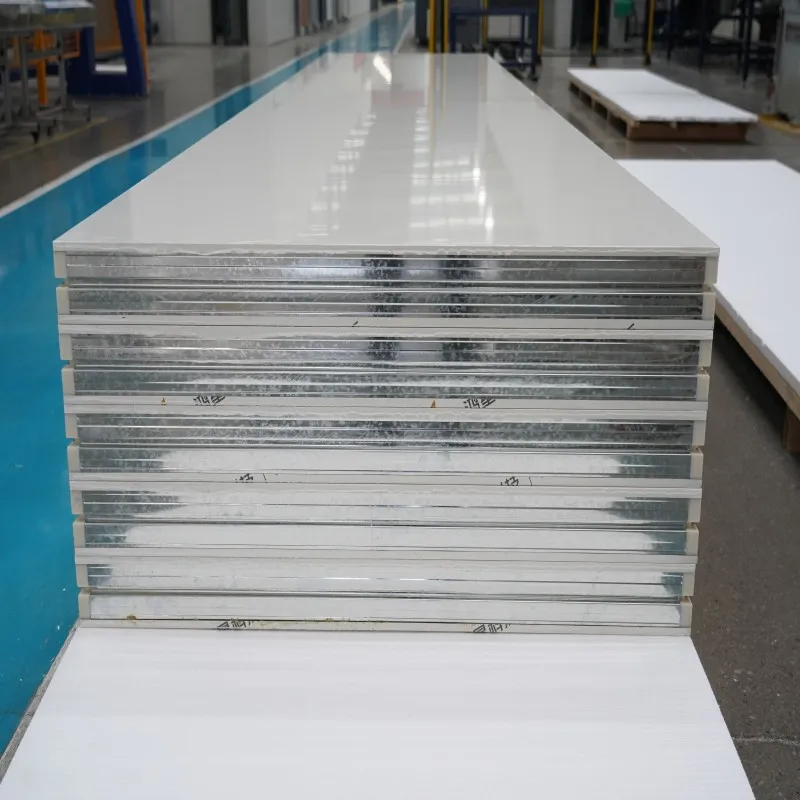

Glostar's Aluminum Honeycomb Manual Cleanroom Panel uses an aerospace-grade hexagonal aluminum foil honeycomb core bonded between two high-quality color-coated steel skins via our hot-press process. The result is a panel that is simultaneously the flattest, lightest, and most particle-free option available for high-specification cleanroom construction.
Designed for ISO Class 1–100 environments, this clean room panel is the preferred choice for semiconductor fabs, pharmaceutical aseptic suites, and precision medical device manufacturing facilities where surface integrity and contamination control are non-negotiable.
Key Advantages
4 Reasons Cleanroom Engineers Specify Glostar Cleanroom Panels
01 · Dust-Free No Fiber, No Particle RiskRock wool sheds fibers. Foam cores can crumble at cut edges. Aluminum honeycomb generates zero particulates under any condition — cutting, installation, or long-term vibration. For ISO Class 1–100 semiconductor and pharmaceutical environments, this is not a preference; it is a requirement. Our panels deliver it as standard. |
02 · Class A Fire Rating Non-CombustibleThe aluminum honeycomb core is entirely inorganic and non-combustible. Combined with our color-coated steel skins, the panel assembly achieves Class A fire resistance. No burning, no molten droplets, no toxic fume emission under fire exposure — meeting the strictest fire safety requirements for pharmaceutical GMP and electronics cleanroom construction. |
03 · Ultra-Light High Structural StrengthAt roughly 30–40% lighter than equivalent rock wool panels of the same thickness, aluminum honeycomb panels dramatically reduce dead load on your structure — a critical factor for ceiling applications and high-rise facility fit-outs. Despite the low weight, the honeycomb geometry provides exceptional rigidity and compressive strength, supporting walkable ceiling loads where required. |
Technical Specifications
Product Specifications
| Parameter | Specification |
|---|---|
| Core Material | Aluminum foil honeycomb |
| Standard Thickness | 50mm / 75mm / 100mm (custom available) |
| Standard Width | 950mm / 1150mm (custom widths available) |
| Outer / Inner Steel Facing | Pre-painted galvanized steel · 0.4 – 0.6mm outer / 0.4 – 0.5mm inner |
| Surface Material Options | Color-coated steel / 304 Stainless Steel |
| Fire Rating | Class A1 |
| Surface Finish | PPGI color-coated steel (standard: RAL 9016 white) |
| Certifications | CE, ISO 9001 |
Applications
Applicable Industries
💊 Pharmaceutical & Biotech GMP aseptic production suites, sterile fill-finish rooms, and bioreactor areas require absolute contamination control and surfaces that withstand repeated chemical disinfection. Aluminum honeycomb panels meet all GMP surface integrity requirements. |
🔬 Electronics & Semiconductors Chip fabrication, wafer inspection, and OLED panel production operate in ISO Class 1–100 environments where a single airborne fiber can cause production loss worth hundreds of thousands of dollars. The dust-free characteristic of aluminum honeycomb is the only acceptable choice at this cleanliness tier. |

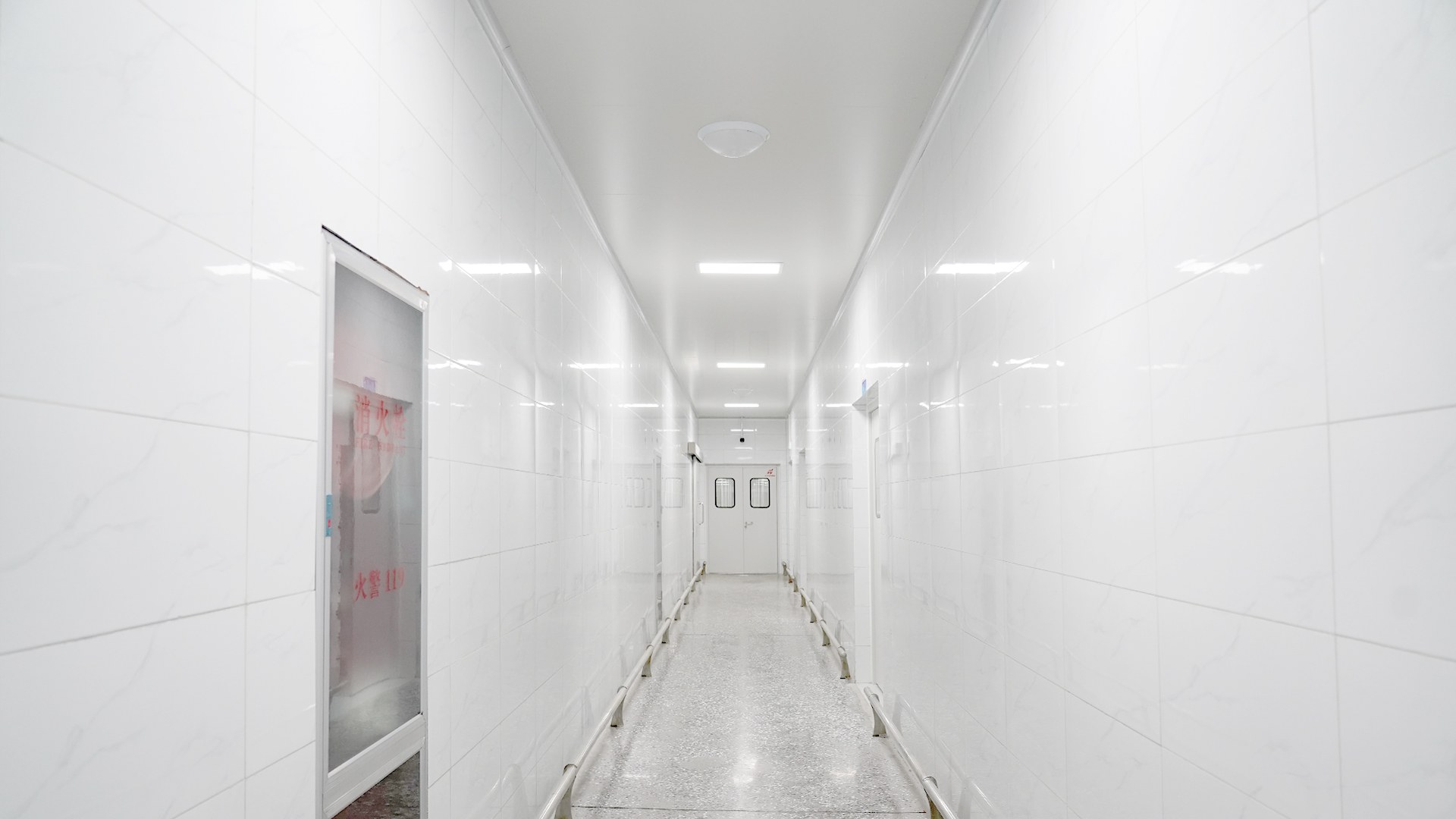

🍖 Food & Beverage Processing Aseptic packaging rooms, dairy processing suites, and infant formula production areas require surfaces that are smooth, non-porous, and resistant to high-pressure steam cleaning (CIP/SIP). The sealed steel skins and aluminum core of our panels withstand daily aggressive cleaning cycles without delamination or surface degradation. |
|
|
|
Why Glostar
Why Glostar Aluminum Honeycomb Panels?
🏭
Hot-Press Manufacturing Eliminates cold-glue bonding failure; bond strength tested per batch before shipment |
✅

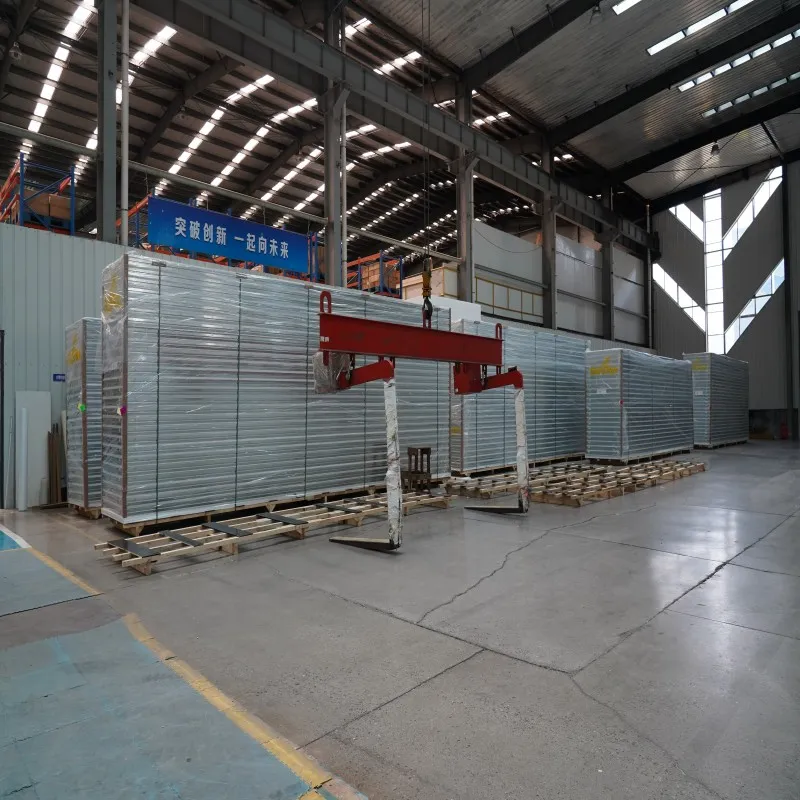

Factory-Direct Pricing Manufactured at our Shandong facility with no middleman markup |
🌍
Custom Engineering Support Panel layout drawings, technical submittals, and cut-list optimization provided for your project |
📐

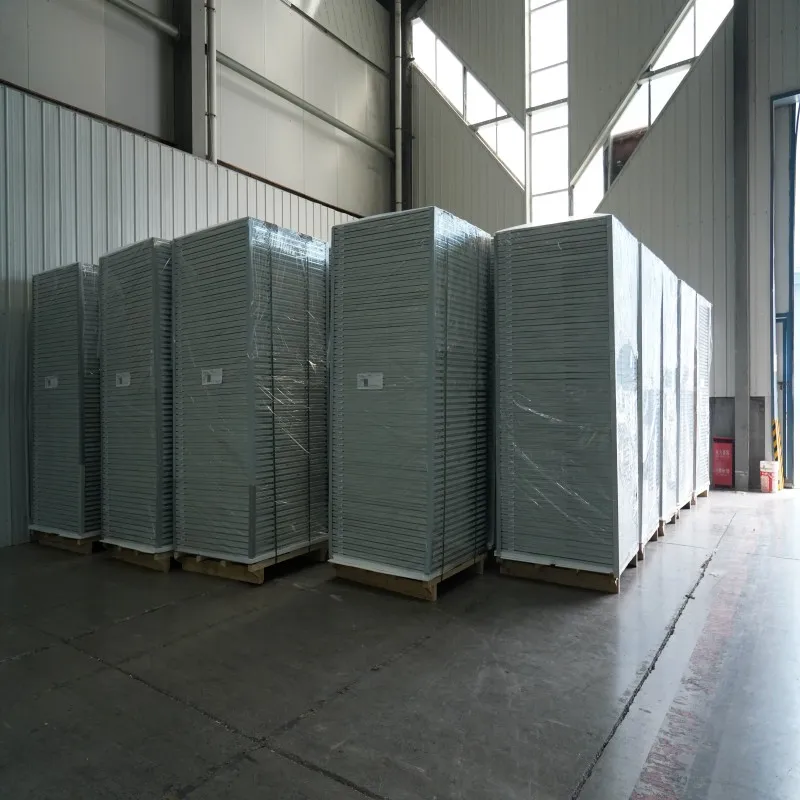

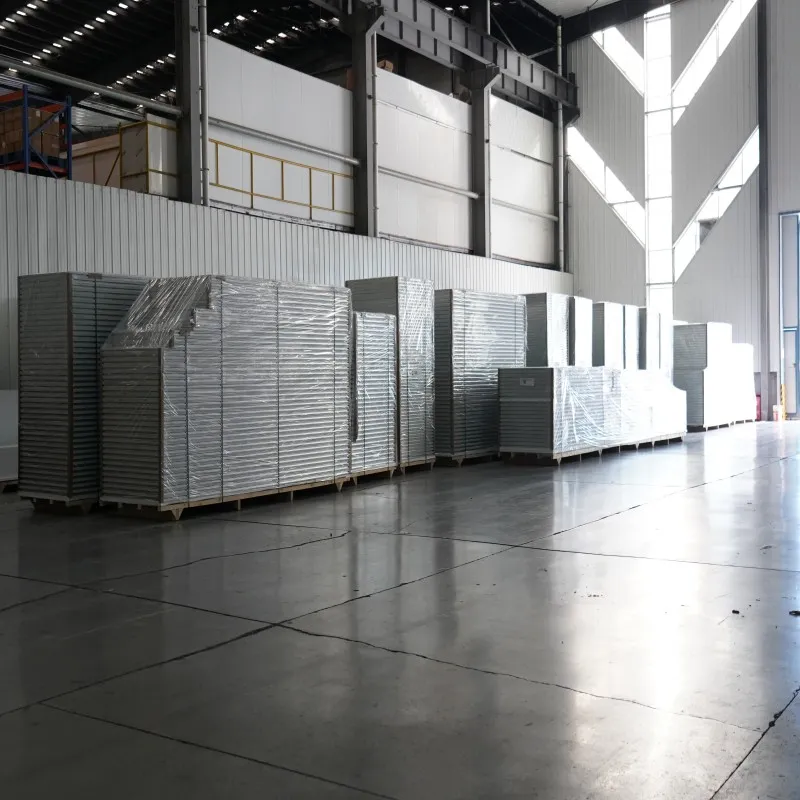

Export Packaging Edge-protected, moisture-barrier packaging for sea freight; panels arrive flat and undamaged |
FAQ
Frequently Asked Questions
What surface finishes are available?
Standard finish is RAL 9016 white PPGI steel. Custom RAL colors, anti-static coatings, and stainless steel skins are available upon request for specialized cleanroom applications.
Can aluminum honeycomb panels be used for walkable ceilings?
Yes. The honeycomb geometry provides exceptional compressive strength relative to weight. With appropriate steel skin gauges (0.5mm+), our panels are suitable for walkable ceiling applications. Please specify your load requirement at inquiry stage and we will recommend the correct configuration.
What is the difference between aluminum honeycomb and rock wool cleanroom panels?
Rock wool offers superior thermal insulation and is ideal for projects requiring both fire resistance and temperature control. Aluminum honeycomb offers unmatched flatness, zero particle shedding, and lighter weight — making it the preferred choice for high-grade semiconductor and pharmaceutical cleanrooms where contamination risk outweighs insulation requirements. For projects requiring both, we also offer hybrid panels combining rock wool core with MgO surface boards.
Ready to specify aluminum honeycomb panels for your cleanroom project?
Send us your floor plan or panel schedule — our engineers will provide a full layout drawing and competitive factory-direct quote within 24 hours.
